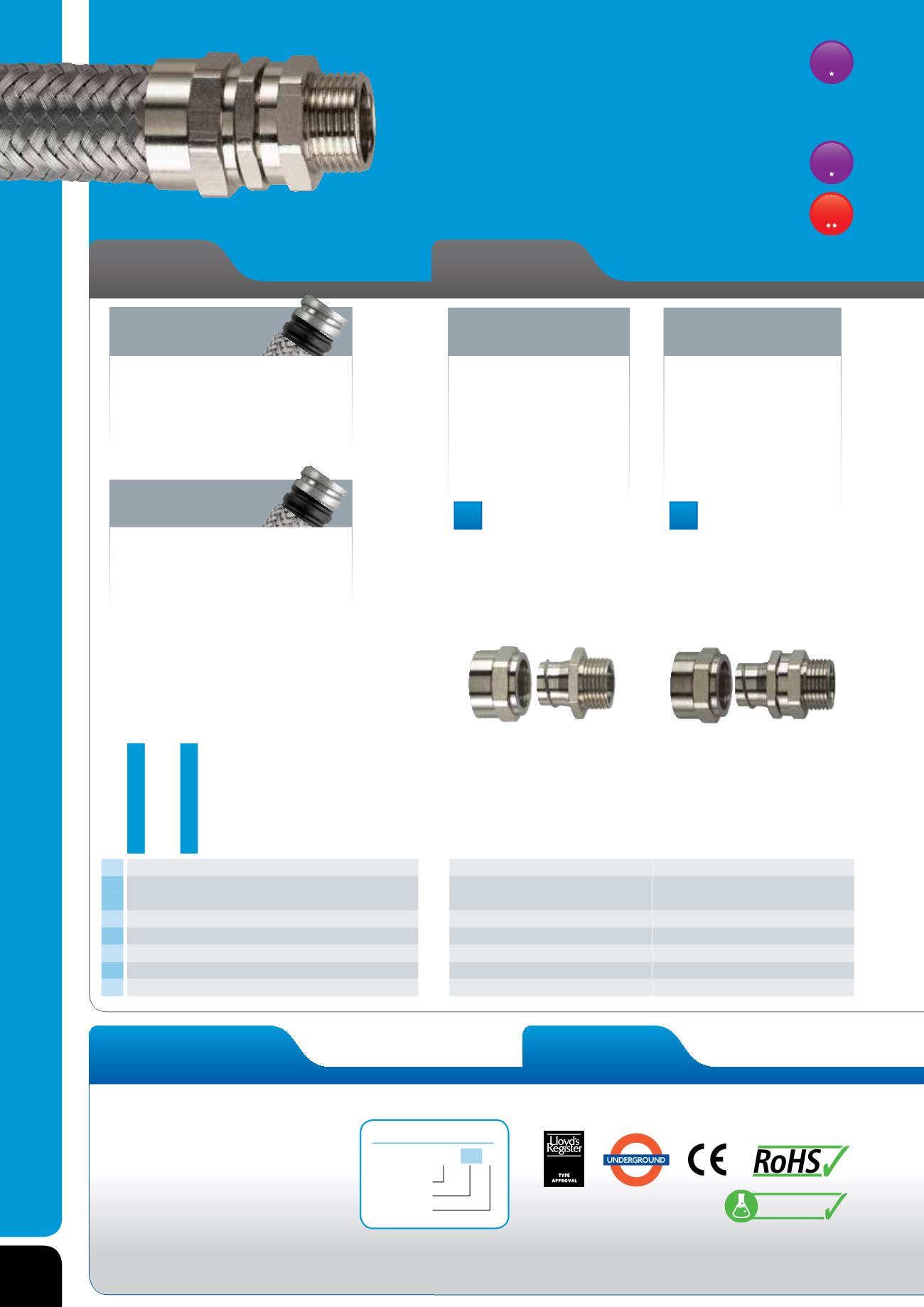

METALLIC
CONDUIT & FITTINGS
76
FSB system galvanised steel
core, pvc coated, galvanised
steel overbraid
LFHUBRD system galvanised
steel core, extra LFH coated,
stainless steel overbraid
STANDARD
EMC
SCREEN
ENHANCED
EMC
SCREEN
STANDARD
EMC
SCREEN
ENHANCED
EMC
SCREEN
STANDARD
LOW FIRE
HAZARD
EXTRA
LOW FIRE
HAZARD
INHERENT
LOW FIRE
HAZARD
outside dia (mm)inside dia (mm)min inside bendradius (mm) part number F S B part numberreel length (m) LFHUBRD nominal size (mm)
12
16
16
20
25
32
40
50
FSB12-M16-M
FSB16-M16-M
FSB16-M20-M
FSB20-M20-M
FSB25-M25-M
FSB32-M32-M
FSB40-M40-M
FSB50-M50-M
metric threadpart number
FSB12-PG9-M
FSB16-PG11-M
FSB20-PG16-M
FSB25-PG21-M
FSB32-PG29-M
FSB40-PG36-M
FSB50-PG48-M
PG threadpart number
FSB12-M16-S
FSB16-M16-S
FSB16-M20-S
FSB20-M20-S
FSB25-M25-S
FSB32-M32-S
FSB40-M40-S
FSB50-M50-S
metric threadpart number
FSB12-PG9-S
FSB16-PG11-S
FSB20-PG16-S
FSB25-PG21-S
FSB32-PG29-S
FSB40-PG36-S
FSB50-PG42-S
PG threadpart number
Fittings
FSB
LFHUBRD
Construction: Galvanised steel, helically
wound, flexible conduit with extra LFH coating
and stainless steel (316) overbraid.
Typical Applications: Metro rail stations where
LFH, EMC screening and anti-vandal properties
are required. Compliant to LUL std 1-085
(Cert No.297).
Construction: Galvanised steel, helically
wound, flexible conduit with pvc coating and
galvanised steel overbraid. Colour zinc,
self colour.
Typical Applications: Industrial environments
where higher abrasion resistance or
screening are required.
M S
fixed external thread
nickel plated brass
Two part fitting comprising of
shell and body with external
thread. This fitting can be
inserted into a knockout and
secured with a locknut.
swivel external thread
nickel plated brass
Two part fitting comprising of
shell and body. The external
thread swivels about the main
body. Can be used with threaded
entries, or knockout secured with
a locknut.
IP68 IP67 IP66 IP65 IP54 IP40 IP69 IP68 IP67 IP66 IP65 IP54 IP40 IP69
BS EN IEC 61386
Note: refer to conduit properties for applicable standards
Ordering Notes
• Add reel length eg: FSB20-25M for 25m reel
• Available on request:
- longer lengths, cut lengths and assemblies
tainless steel overbraided
le threaded fittings
- full copies of independent test report
confirming screening effectiveness
How to read the fittings code
conduit
thread size
fitting type
FSB20-M20-M
Standards
Conduit
FSB12 25 15.2 10.2 30
FSB16 25 18.2 13.0 40
FSB20 LFHUBRD20 25 22.7 16.9 45
FSB25 LFHUBRD25 25 27.2 21.1 55
FSB32 LFHUBRD32 25 35.2 28.1 70
FSB40 LFHUBRD40 10 45.7 37.6 80
FSB50 10 57.7 48.4 90
