METALLIC
CONDUIT & FITTINGS
72
Flexicon
EXD Accessories Range
• ATEX Certification Detail - SIRA01ATEX1284U, SIRA02ATEX1003X
• IEC Ex Certification Detail: IEC Ex SIR07.0052X
• Continuous Operating Temperature: -60°C to +200°C
• Ingress Protection Rating: Up to IP68 when fitted with a suitable Sealing Washer
• Materials: Nickel Plated Brass
• Optional Accessories: Locknut, Serrated Washer, Earth Tag, Sealing Washer. See Page 86
properties
cer nominal dimensions, follow the steps below:-
by consulting the left hand column of the table.
Step 2 - Select the female thread size by consulting column headings at the top of tables, and by cross referencing this with the selection in step 1.
Please note that the data in the tables above includes Adaptors and Reducers that are certified for use in Hazardous Areas.
Internal Metric to External Metric
M16
M20
M25
M32
M40
M50
M63
B-M20-M16-EXD
B-M16-M20-EXD
B-M25-M20-EXD
B-M20-M25-EXD
B-M32-M25-EXD
B-M25-M32-EXD
B-M40-M32-EXD
B-M50-M32-EXD
B-M32-M40-EXD
B-M50-M40-EXD
B-M63-M40-EXD
M16 M20 M25 M32 M40 M50
B-M63-M50-EXD
Female Thread - Internal
Male Thread -
External
Female Thread - Internal
1⁄2 ”
3⁄4 ”
1”
Male Thread -
External
M16 M20
B-050-M20-EXD
B-075-M20-EXD
M25
B-075-M25-EXD
M32
B-100-M32-EXD
M40 M50
Internal Metric to External NPT
Our range of thread converters
are designed for both Industrial
and Hazardous Area applications
with Ex “d”, Ex “e” and Ex “ta”
component approval.
Available with male to female
connection threads these
products can be used to
increase, reduce or convert the
thread type.
Technical Data
Design Specification EN 50262:1989, BS 6121:Part 1:1989
ATEX Code of
Protection Category
ATEX II 2 GD Ex d IIC & Ex e II -
Component & Equipment, Zone 1, Zone
2, Zone 21, & Zone 22 - Gas Groups IIA, IIB, IIC, ATEX IM2 Ex d I, Ex e I
ATEX Compliance
Standards
EN 60079-0:2006, EN 60079-1:2004, EN 60079-7:2007, EN 50281-1-1:1998
IEC Ex Code of
Protection Category
Ex d I, Ex e I, Ex d IIC, Ex e II, Ex tD A21 IP6X
IEC Ex Compliance
Standards
IEC 60079-0:2004, IEC 60079-1:2003,
IEC 60079-7:2006-07, IEC 61241-0:2004,
IEC 61241-1:2004

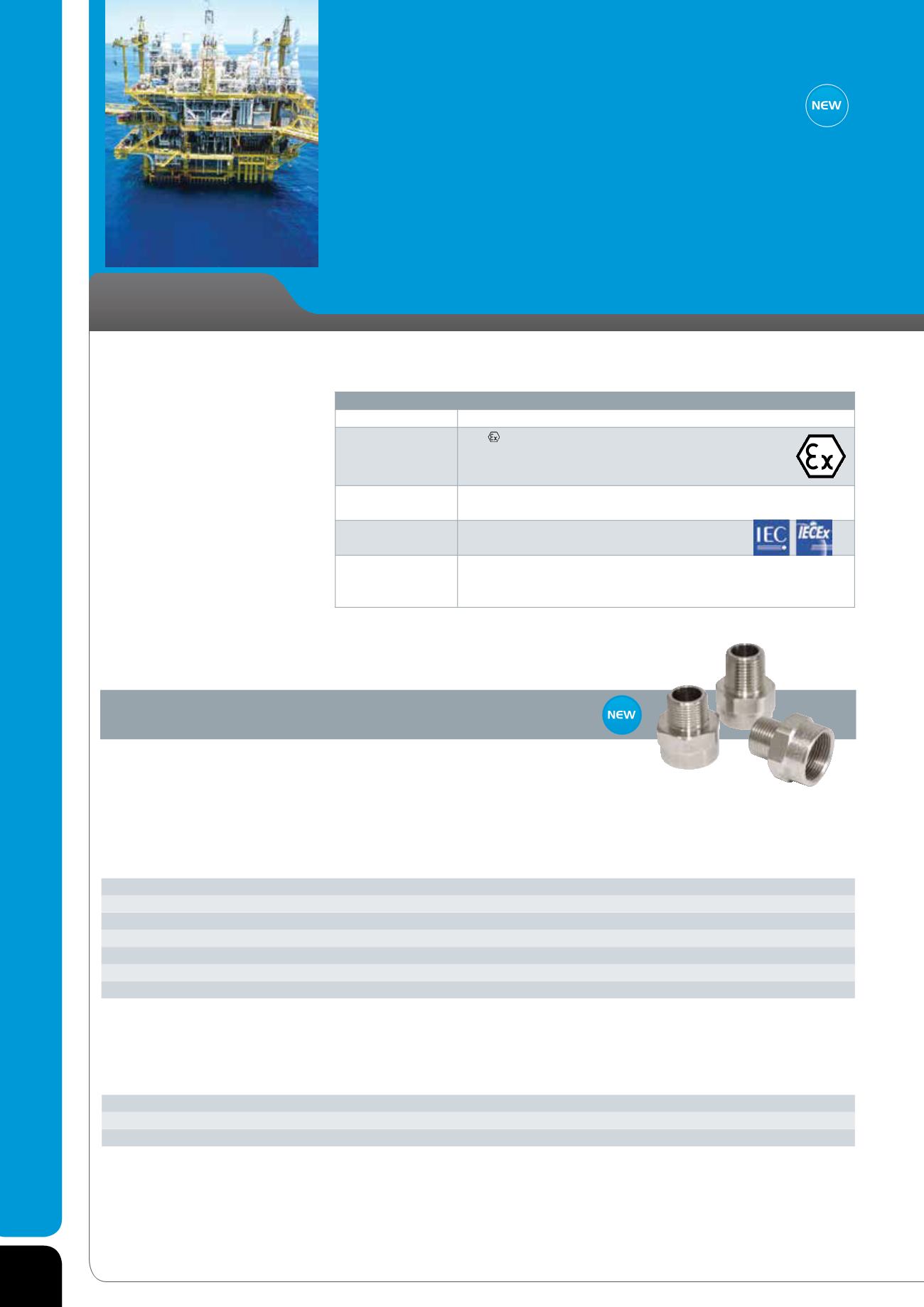

EXD Thread Converters
Our thread converters are Nickel Plated Brass as standard.
Accessories
