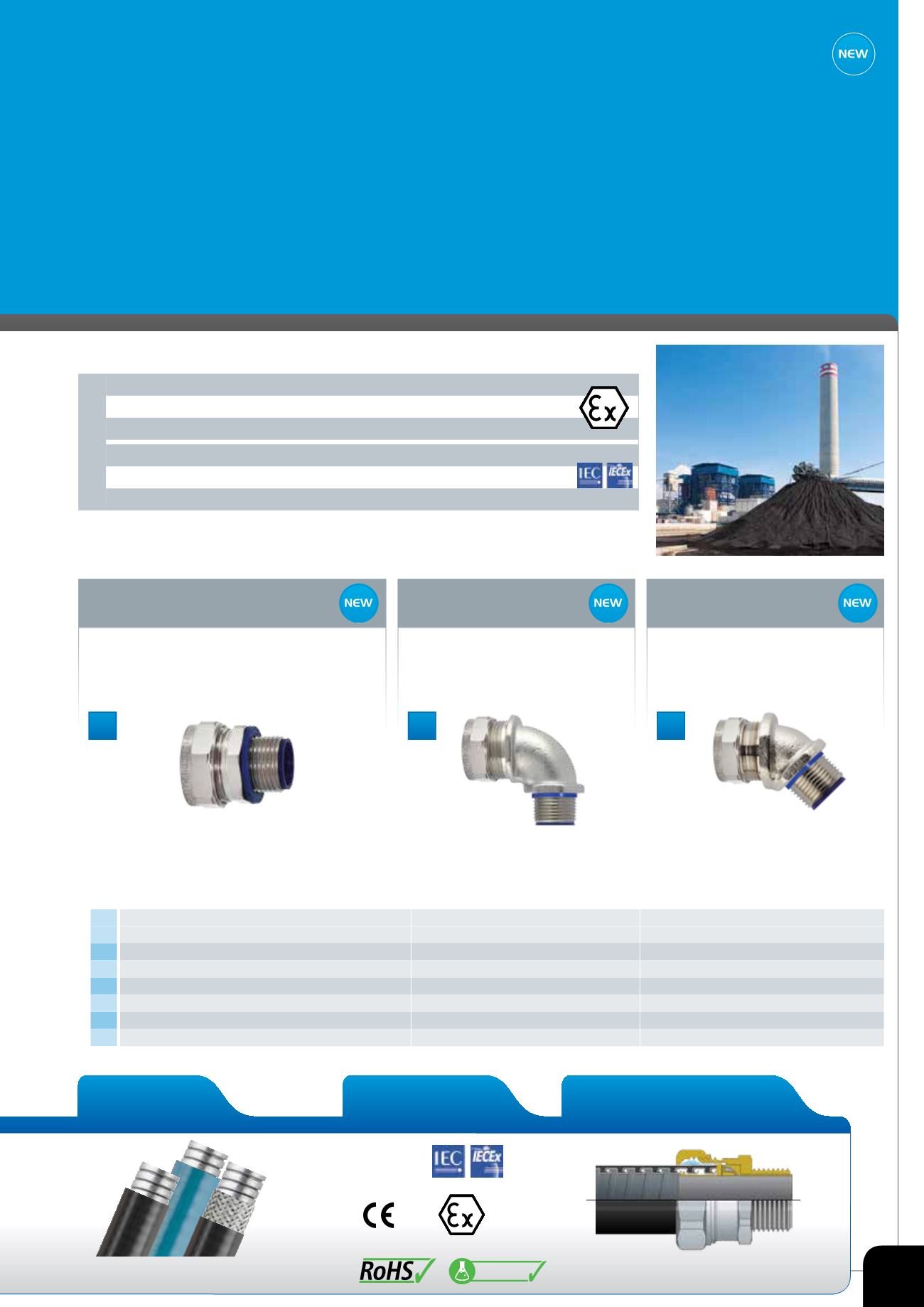

Hazardous area liquid tight conduit solutions
EXE - Increased Safety and Dust Ignition Proof
• IP Rating: IP66 for EX e and EX t applications
• IP Rating: IP67 + IP68 (5 bar) + IP69 for
industrial applications
• Material: Nickel Plated Brass
• Suitable for knockouts or threaded entries
• Operating Temperature of fitting -20˚C to +85˚C
for EX e and EX t applications
• High mechanical strength and electrical continuity
• Operating Temperature of fitting -50°C to +135°C
for industrial applications
• Can be used in Zone 1, Zone 2, Zone 21
and Zone 22 Hazardous areas when used with
Flexicon’s Liquid Tight range of flexible conduits
• ATEX and IECEx Ex e (Increased Safety)
• ATEX and IECEx Ex t (Dust Ignition Protection)
• Vibration and shock resistant to EN61373 Cat 2
properties
Hazardous Area Approvals
Group II
ATEX APPROVAL to EN60079-0 2009 Intertek Certificate no: ITS 14ATEX379584
Ex e Increased Safety Ex e II Gb EN 60079-7 2007
Ex tb Dust Ignition Proof Ex tb III C DA IP6X EN 60079-31 2009
IECEx APPROVAL to IEC80079-0 2007 Intertek Certificate no: IECEx ITS 14.005U
Ex e Increased Safety Ex e II Gb IEC 60079-7 2006
Ex tb Dust Ignition Proof Ex tb III C DA IP6X IEC 60079-31 2008
BS EN IEC 61386
0359
REACh
or any of the LTP conduit types, see page 64
LTP - EXE 71
Used with Standards Technical Drawing
16
16
20
25
32
40
50
63
LTP - EXE LTP - EXE - 90 LTP - EXE - 45
external thread
nickel plated brass
Multipart compression fitting including elastomeric seal.
Can be used for knockout or threaded entries as fitting
rotates until tightened.
external thread
nickel plated brass
90˚ multipart compression fitting including
elastomeric seal. Can be used for knockout.
external thread
nickel plated brass
45˚ multipart compression fitting including
elastomeric seal. Can be used for knockout.
IP68 IP67 IP66 IP65 IP54 40 IP69 IP68 IP67 IP66 IP65 IP54 IP40 IP69 IP68 IP67 IP66 IP65 IP54 IP40 IP69
LTPAS LTPPU LTBRDLFH
LTP16-M16-EXE LTP16-PG11-EXE LTP16-050-EXE (½") LTP16-M16-EXE-90 LTP16-M16-EXE-45
LTP16-M20-EXE LTP16-PG13-EXE LTP16-M20-EXE-90 LTP16-M20-EXE-45
LTP20-M20-EXE LTP20-PG16-EXE LTP20-050-EXE (½") LTP20-M20-EXE-90 LTP20-M20-EXE-45
LTP25-M40-EXE LTP25-PG21-EXE LTP25-075-EXE (¾") LTP25-M25-EXE-90 LTP25-M25-EXE-45
LTP32-M32-EXE LTP32-PG29-EXE LTP32-100-EXE (1") LTP32-M32-EXE-90 LTP32-M32-EXE-45
LTP40-M40-EXE LTP40-PG36-EXE LTP40-125-EXE (1¼") LTP40-M40-EXE-90 LTP40-M40-EXE-45
LTP50-M50-EXE LTP50-PG42-EXE LTP50-150-EXE (1½") LTP50-M50-EXE-90 LTP50-M50-EXE-45
LTP63-M63-EXE LTP63-PG48-EXE LTP63-200-EXE (2") LTP63-M63-EXE-90 LTP63-M63-EXE-45
To fitnominal size (mm)metric threadpart number metric threadpart number metric threadpart number NPT threadpart number PG thread
Offering Ex e (Increased Safety) and Ex t (Dust Ignition Protection)
performance with any Liquid Tight Conduits
