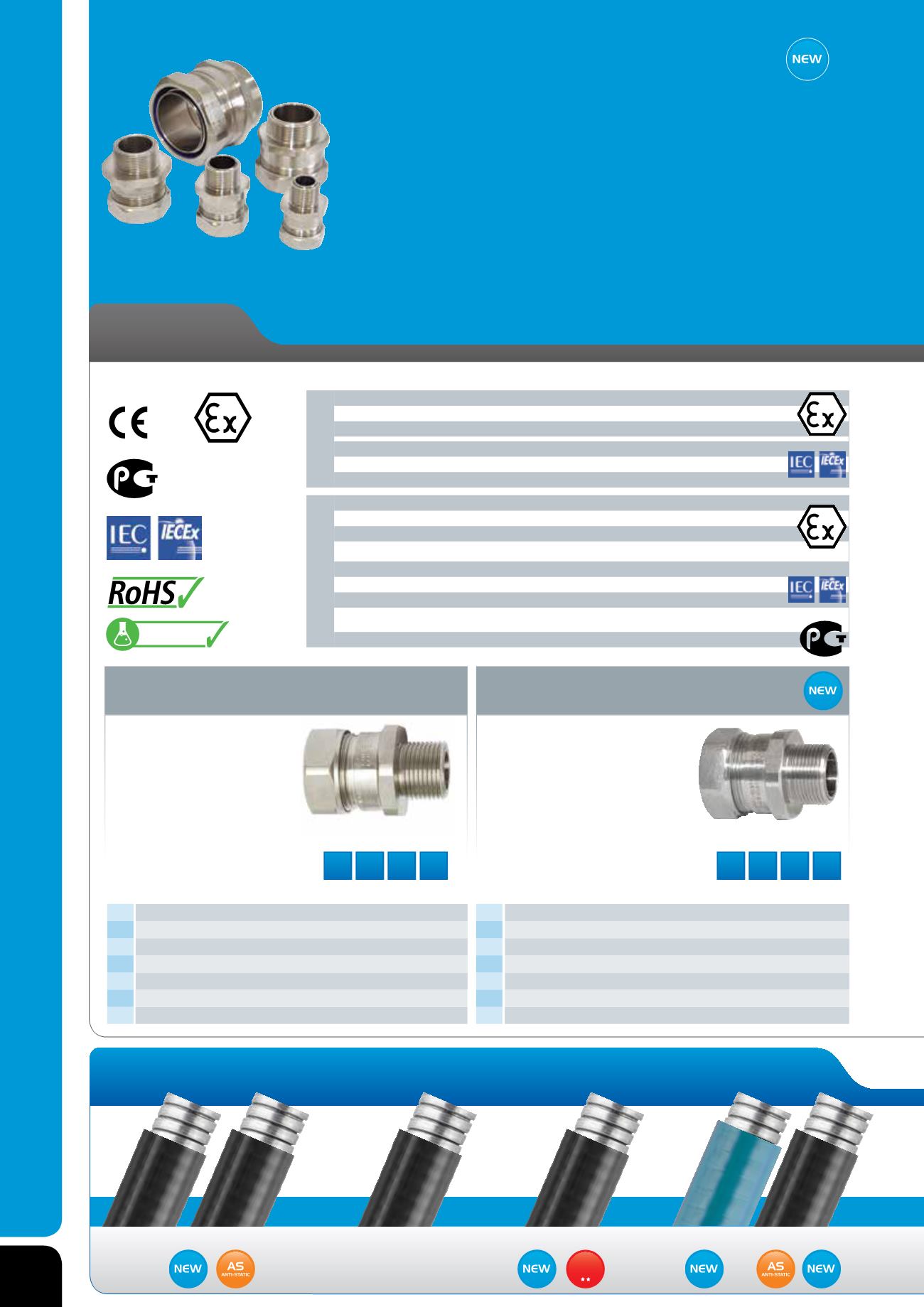

METALLIC
CONDUIT & FITTINGS
68
Used with the following conduits:- as featured on pages 64 & 66
Flameproof EXD Barrier gland
16
20
25
32
40
50
63
LTP - EXD LTP - EXD - SS
Construction: Nickel Plated Brass
fitting with a elastomeric seal and two
part epoxy resin pack. Supplied in
boxes of one, complete with
instructions and gloves.
Typical Applications: Flameproof
barrier gland offering a high
specification, high quality solution for
Ex d, Ex e and Ex ta applications.
IP rating: IP66 + IP67 + IP68 (5 bar)
+ IP69
Construction: Stainless steel (grade 316)
fitting with a elastomeric seal and two part
epoxy resin pack. Supplied in boxes of one,
complete with instructions and gloves.
Typical Applications: Flameproof barrier
gland offering a high specification, high
quality solution for Ex d, Ex e and Ex ta
applications where additional corrosion
resistance is required.
IP rating: IP66 + IP67 + IP68 (5 bar) + IP69
IP68 IP67 IP66 IP65 IP54 IP40 IP69 I I I I I I P I P I IP68 IP67 IP66 IP65 IP54 IP40 IP69 P I I I I I I 0 I I P 4
• IP Rating: IP66 + IP67 + IP68 (5 bar) + IP69
• Material: Nickel Plated Brass or Stainless Steel (316)
• Suitable for threaded entries
• Operating Temperature of gland -60˚C to +85˚C
• High mechanical strength
• Can be used with individual cores or
oversheathed cable
• Can be used in Zone 1, Zone 2, Zone 21
and Zone 22 Hazardous areas when used
with Flexicon’s Liquid Tight range of
flexible conduits
• ATEX and IECEx Ex d (Flameproof)
• ATEX and IECEx Ex e (Increased Safety)
• ATEX and IECEx Ex ta (Dust Ignition Protection)
• LUL Cert No. 2624
properties
Hazardous area liquid tight
conduit solutions
EXD Conduit Glands
16
20
25
32
40
50
63
To fit nominal size (mm) metric thread part number NPT thread part number
LTP20-M20-EXD-SS LTP20-050-EXD-SS
LTP25-M25-EXD-SS LTP25-075-EXD-SS
LTP32-M32-EXD-SS LTP32-100-EXD-SS
LTP40-M40-EXD-SS LTP40-125-EXD-SS
LTP50-M50-EXD-SS LTP50-150-EXD-SS
LTP63-M63-EXD-SS LTP63-200-EXD-SS
To fit nominal size (mm) metric thread part number NPT thread part number
LTP16-M20-EXD LTP16-050-EXD
LTP20-M20-EXD LTP20-050-EXD
LTP25-M25-EXD LTP25-075-EXD
LTP32-M32-EXD LTP32-100-EXD
LTP40-M40-EXD LTP40-125-EXD
LTP50-M50-EXD LTP50-150-EXD
LTP63-M63-EXD LTP63-200-EXD
Fittings
STANDARD
LOW FIRE
HAZARD
EXTRA
LOW FIRE
HAZARD
INHERENT
LOW FIRE
HAZARD
Hazardous Area Approvals Standards
BS EN IEC 61386
0518
Group I
ATEX APPROVAL to EN60079-0 2009 Sira Certificate no: Sira 10ATEX1172X
Ex d Flameproof Ex d I Mb EN 60079-1 2007
Ex e Increased Safety Ex e I Mb EN 60079-7 2007
IECEx APPROVAL to IEC60079-0 2007 Sira Certificate no: IECEx SIR 10.0094X
Ex d Flameproof Ex d I Mb IEC 60079-1 2007
Ex e Increased Safety Ex e I Mb IEC 60079-7 2006-7
Group II
ATEX APPROVAL to EN60079-0 2009 Sira Certificate no: Sira 10ATEX1172X
Ex d Flameproof Ex d II C Gb EN 60079-1 2007
Ex e Increased Safety Ex e II C Gb EN 60079-7 2007
Ex ta Dust Ignition Proof Ex ta IIIC DA IP6X IEC 60079-31 2008
IECEx APPROVAL to IEC60079-0 2007 Sira Certificate no: IECEx SIR 10.0094X
Ex d Flameproof Ex d II C Gb IEC 60079-1 2007
Ex e Increased Safety Ex e II C Gb IEC 60079-7 2006-7
Ex ta Dust Ignition Proof Ex ta IIIC DA IP6X IEC 60079-31 2008
GOST APPROVAL no. POCC GB.HO06.B00207
LTP / LTPAS LTPHC LTPLFH LTPPU / LTPPUAS
REACh
