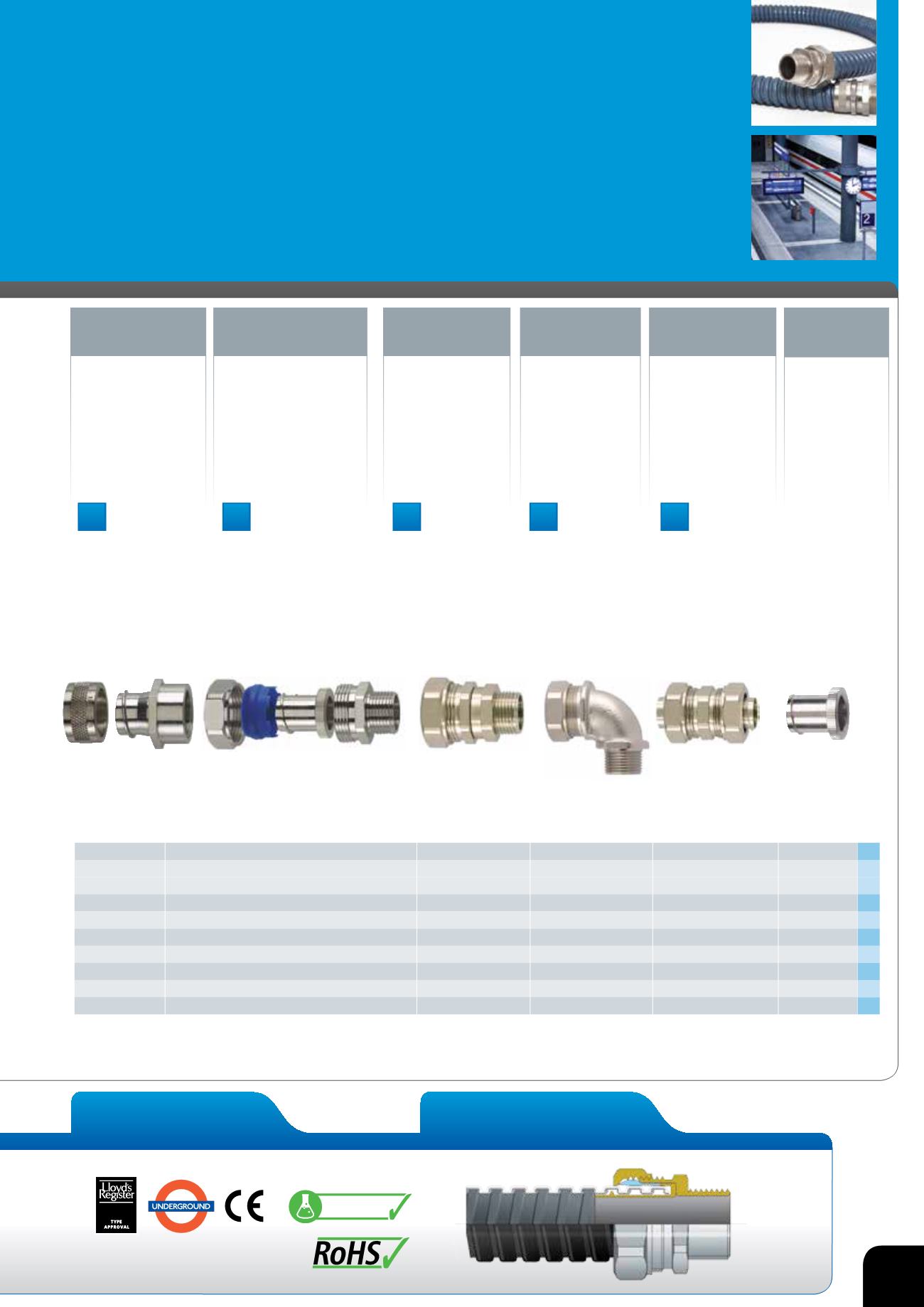

Standards
63
Technical Drawing
• High mechanical strength
• Highly flexible
• IP rating: IP54 with standard fittings,
IP65 with type C compression fittings
• Extra low Fire Hazard UL94 V0, for LFH see page 102 (LFHU)
• High fatigue life and high abrasion resistant (FPU)
• Halogen, sulphur and phosphorus free
• Compliant to LUL Std 1-085 (LFHU) (Cert No. 297)
• Temperature range: -25˚C to +90˚C (LFHU)
-40˚C to +100˚C (FPU)
• Nickel plated brass fittings
• Vibration and shock tested to EN61373 Cat 2
properties
BS EN IEC 61386
Note: refer to conduit properties for applicable standards
F
fixed internal
thread nickel
plated brass
Two part fitting
comprising shell and
body with internal thread
which can be used to
couple two pieces of
conduit together when
used with a swivel fitting.
IP68 IP67 IP66 IP65 IP54 IP40 IP69
C
external thread
nickel plated brass
Multipart compression
fitting including elastomeric
seal. Can be used for
knockouts or threaded
entries as fitting rotates
until tightened.
IP68 IP67 IP66 IP65 IP54 IP40 IP69
C90
external thread
elbow nickel
plated brass
Multipart 90˚
compression fitting
including elastomeric
seal.
C-S
external thread
nickel plated
brass
Multipart compression
fitting including
elastomeric seal.
The external thread
swivels about the
main body even
after tightening.
coupler
nickel plated
brass
Multi part
compression coupler
including elastomeric
seals to join 2
conduits.
E
insert nickel
plated brass
Single part,
machined insert
to cap end of
conduit.
metric threadpart number metric threadpart number metric threadpart number metric threadpart number NPT threadpart number PG threadpart number part number nominal size (mm) part number
IP68 IP67 IP66 IP65 IP54 IP40 IP69 IP68 IP67 IP66 IP65 IP54 IP40 IP69 IP68 IP67 IP66 5 54 40 IP69
FSU16-M16-F
FSU16-M20-F
FSU20-M20-F
FSU25-M25-F
FSU32-M32-F
FSU40-M40-F
FSU50-M50-F
FSU63-M63-F
FSU12-M16-C-S
FSU16-M16-C-S
FSU16-M20-C-S
FSU20-M20-C-S
FSU25-M25-C-S
FSU32-M32-C-S
FSU12-M16-C
FSU16-M16-C
FSU16-M20-C
FSU20-M20-C
FSU25-M25-C
FSU32-M32-C
FSU40-M40-C
FSU50-M50-C
FSU12-PG9-C
FSU16-PG11-C
FSU16-PG13-C
FSU20-PG16-C
FSU25-PG21-C
FSU32-PG29-C
FSU12-M16-C90
FSU16-M16-C90
FSU16-M20-C90
FSU20-M20-C90
FSU25-M25-C90
FSU32-M32-C90
FSU16-050-C
FSU20-050-C
FSU25-075-C
FSU32-100-C
FSU16-FSU16
FSU20-FSU20
FSU25-FSU25
FSU32-FSU32
FSU12-E
FSU16-E
FSU16-E
FSU20-E
FSU25-E
FSU32-E
FSU40-E
FSU50-E
FSU63-E
FSU75-E
12
16
16
20
25
32
40
50
63
75
REACh
