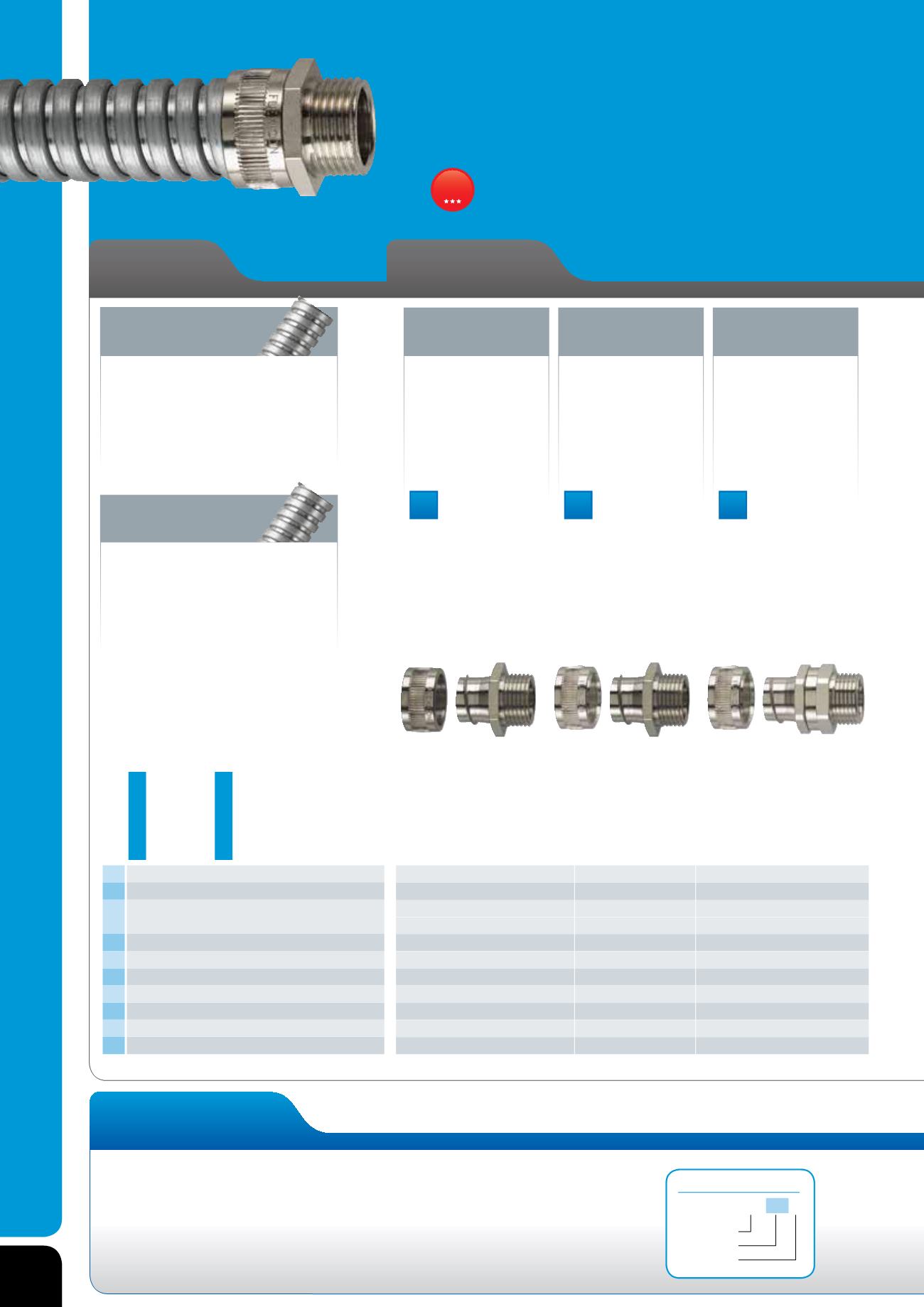

METALLIC
CONDUIT & FITTINGS
58
Ordering Notes
Conduit Fittings
FU
SSU
FU & SSU system
galvanised steel and
stainless steel
STANDARD
LOW FIRE
HAZARD
EXTRA
LOW FIRE
HAZARD
INHERENT
LOW FIRE
HAZARD
Construction: Stainless steel
(grade 316), helically wound, flexible
conduit.
Colour stainless steel, self colour.
Typical Applications: Instrumentation
and security.
Construction: Galvanised steel, helically
wound, flexible conduit. Colour zinc,
self colour.
Typical Applications: Underfloor wiring
in office blocks.
M M-SS S
fixed external
thread nickel
plated brass
Two part fitting comprising
shell and body with
external thread. This fitting
can be inserted into a
knockout and secured with
a locknut.
fixed external
thread stainless
steel
Two part fitting comprising
shell and body with
external thread. This fitting
can be inserted into a
knockout and secured with
a locknut.
swivel external
thread nickel
plated brass
Two part fitting comprising
shell and body. The
external thread swivels
about the main body. Can
be used with threaded
entries, or knockout
secured with a locknut.
IP68 IP67 IP66 IP65 IP54 IP40 IP69 IP68 IP67 IP66 IP65 IP54 IP40 IP69 IP68 IP67 IP66 IP65 IP54 IP40 I
• Add reel length eg: FU20-25M for 25m reel
ade to order on request and
may be subject to MOQ and lead time
+ Double interlock section
• Available on request:
- longer lengths and bulk packaging
- cut lengths and assemblies
- alternative threads conduit
thread size
fitting type
How to read the fittings code
FU10-M12-M
outside dia (mm)inside dia (mm)min inside bendradius (mm) reel length (m) reel length (m) metric threadpart number metric threadpart number metric threadpart number PG threadpart number PG threadpart number S SU part number FU nominal size (mm)
10
12
16
16
20
25
32
40
50
63
75
part number
FU10 + 25, 50 SSU10 + 10, 25, 50 9.0 6.8 25
FU12 25, 50 SSU12 + 10, 25, 50 13.0 10.2 30
FU16 10, 25, 50 SSU16 10, 25, 50 16.0 13.0 40
FU20 10, 25, 50 SSU20 10, 25 20.5 16.9 45
FU25 10, 25, 50 SSU25 10, 25 25.0 21.1 55
FU32 10, 25 SSU32 10, 25 32.0 28.1 60
FU40 10, 25 SSU40 10 42.5 37.6 80
FU50 10, 25 SSU50 10 53.0 48.4 90
FU63 10 SSU63* 10 62.5 57.5 115
FU75 10 77.0 70.0 150
FU10-M12-M
FU12-M16-M
FU16-M16-M
FU16-M20-M
FU20-M20-M
FU25-M25-M
FU32-M32-M
FU40-M40-M
FU50-M50-M
FU63-M63-M
FU75-M75-M
FU10-PG7-M
FU12-PG9-M
FU16-PG11-M
FU20-PG16-M
FU25-PG21-M
FU32-PG29-M
FU40-PG36-M
FU50-PG48-M
SSU10-M12-M
SSU12-M16-M
SSU16-M16-M
SSU20-M20-M
SSU25-M25-M
SSU32-M32-M
SSU40-M40-M
SSU50-M50-M
SSU63-M63-M*
FU10-M12-S
FU12-M16-S
FU16-M16-S
FU16-M20-S
FU20-M20-S
FU25-M25-S
FU32-M32-S
FU40-M40-S
FU50-M50-S
FU63-M63-S
FU10-PG7-S
FU12-PG9-S
FU16-PG11-S
FU16-PG13-S
FU20-PG16-S
FU25-PG21-S
FU32-PG29-S
FU40-PG36-S
FU50-PG42-S
