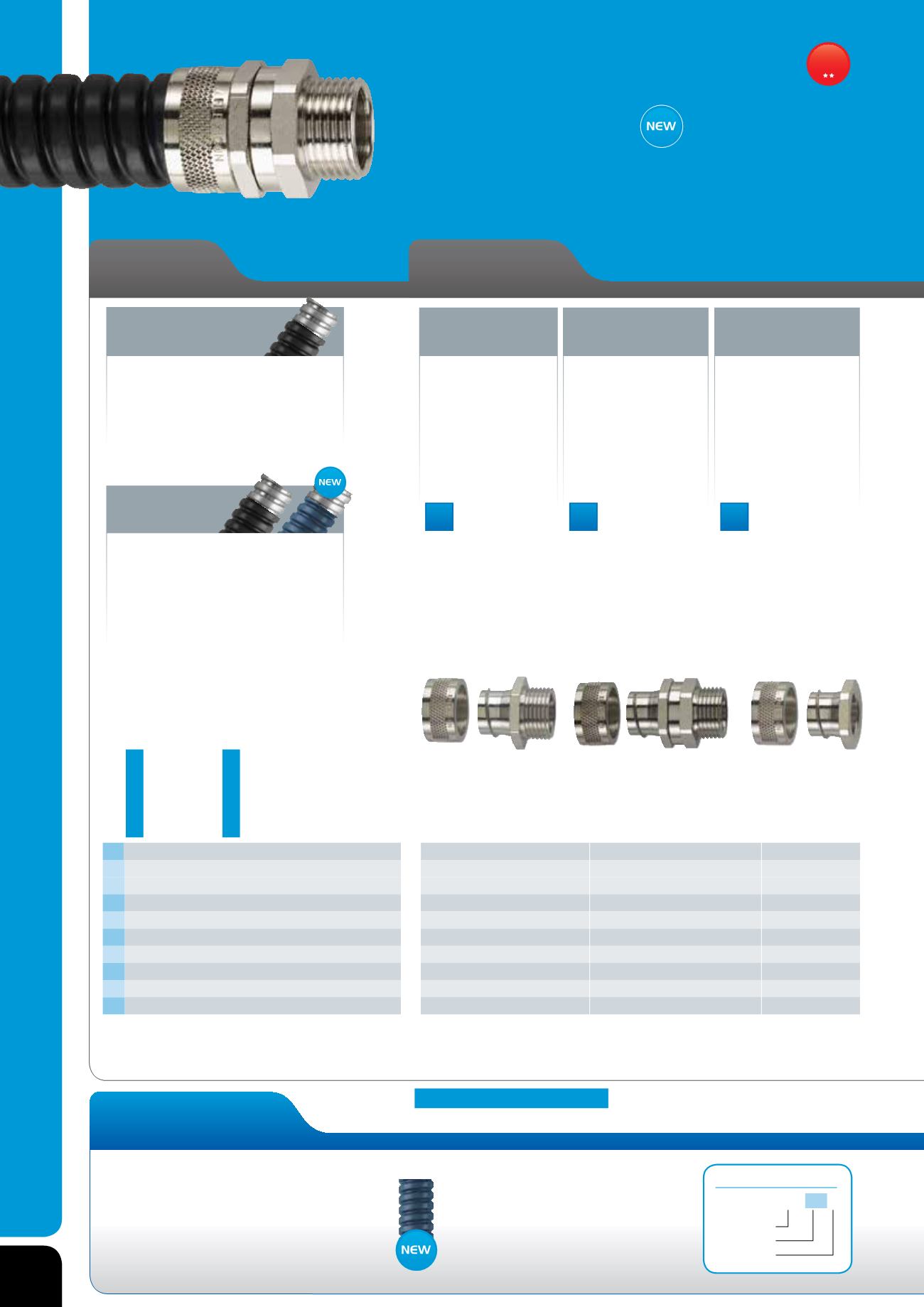

METALLIC
CONDUIT & FITTINGS
62
Ordering Notes
Conduit
LFHU system
galvanised steel LFH coated
FPU system
galvanised steel
polyurethane coated
STANDARD
LOW FIRE
HAZARD
EXTRA
LOW FIRE
HAZARD
INHERENT
LOW FIRE
HAZARD
LFHU
Construction: Galvanised steel, helically
wound, flexible steel conduit with Low
Fire Hazard (LFH) coating.
Colour black.
Typical Applications: Public and
commercial buildings and tunnels.
FPU
Construction: Galvanised steel, helically
wound, flexible steel conduit with low
temperature, high abrasion, high fatigue
life halogen free polyurethane coating.
Colour black and metallic blue.
Typical Applications: Where low
temperature and mechanical strength
are important.
Fittings
metric threadpart number metric threadpart number part number PG threadpart number PG threadpart number hole size (mm) outside dia (mm)inside dia (mm)min inside bendradius (mm) part number reel length (m) reel length (m) LFHU part number FPU nominal size (mm)
12
16
16
20
25
32
40
50
63
75
• For LFH performance see page 102
Important Note
• Available on request:
- longer lengths and bulk packaging
- cut lengths and assemblies additional sizes
- stainless steel fittings (grade 316)
- alternative threads
- 45° C type elbows 16 to 32mm
conduit
thread size
fitting type
How to read the fittings code
FSU10-M12-M
• Add reel length eg: LFHU20B-25M for 25m reel
d on LFHU conduit
• For metallic blue change B to BU eg FPU20BU-25M
* Indicates parts made to order on request and
may be subject to MOQ and lead time
M S P
fixed external
thread nickel
plated brass
Two part fitting
comprising shell and
body with external
thread. This fitting can
be inserted into a
knockout and secured
with a locknut.
swivel external
thread nickel
plated brass
Two part fitting comprising
shell and body. The
external thread swivels
about the main body. Can
be used with threaded
entries, or knockout
secured with a locknut.
plain hole
connector nickel
plated brass
Two part fitting comprising
shell and body without
thread. The body is fitted
through the opposite side
of the entry to the conduit
and acts as a locking
device also providing a
smooth entry bush.
IP68 IP67 IP66 IP65 IP54 IP40 IP69 IP68 IP67 IP66 IP65 IP54 IP40 IP69 IP68 IP67 IP66 IP65 IP54 IP40 IP69
FSU12-M16-M FSU12-PG9-M
FSU16-M16-M FSU16-PG11-M
FSU16-M20-M
FSU20-M20-M FSU20-PG16-M
FSU25-M25-M FSU25-PG21-M
FSU32-M32-M FSU32-PG29-M
FSU40-M40-M FSU40-PG36-M
FSU50-M50-M FSU50-PG48-M
FSU63-M63-M
FSU75-M75-M
FSU12-M16-S FSU12-PG9-S
FSU16-M16-S FSU16-PG11-S
FSU16-M20-S FSU16-PG13-S
FSU20-M20-S FSU20-PG16-S
FSU25-M25-S FSU25-PG21-S
FSU32-M32-S FSU32-PG29-S
FSU40-M40-S FSU40-PG36-S
FSU50-M50-S FSU50-PG42-S
FSU63-M63-S
12 FSU12-P
16 FSU16-P
20 FSU20-P
25 FSU25-P
32 FSU32-P
40 FSU40-P
51 FSU50-P
61 FSU63-P
75 FSU75-P
LFHU12B* 25 FPU12B* 25 14.0 10.2 30
LFHU16B 25, 50 FPU16B 25 17.0 13.0 40
LFHU20B 10, 25, 50 FPU20B 25, 50 21.5 16.9 45
LFHU25B 10, 25, 50 FPU25B 25, 50 26.0 21.1 55
LFHU32B 10, 25 FPU32B 25 34.0 28.1 80
LFHU40B 10, 25 FPU40B* 10 44.5 37.6 90
LFHU50B 10, 25 FPU50B* 10 55.0 48.4 100
LFHU63B 10 FPU63B* 10 64.5 57.5 115
LFHU75B 10 FPU75B* 10 79.0 70.0 150
