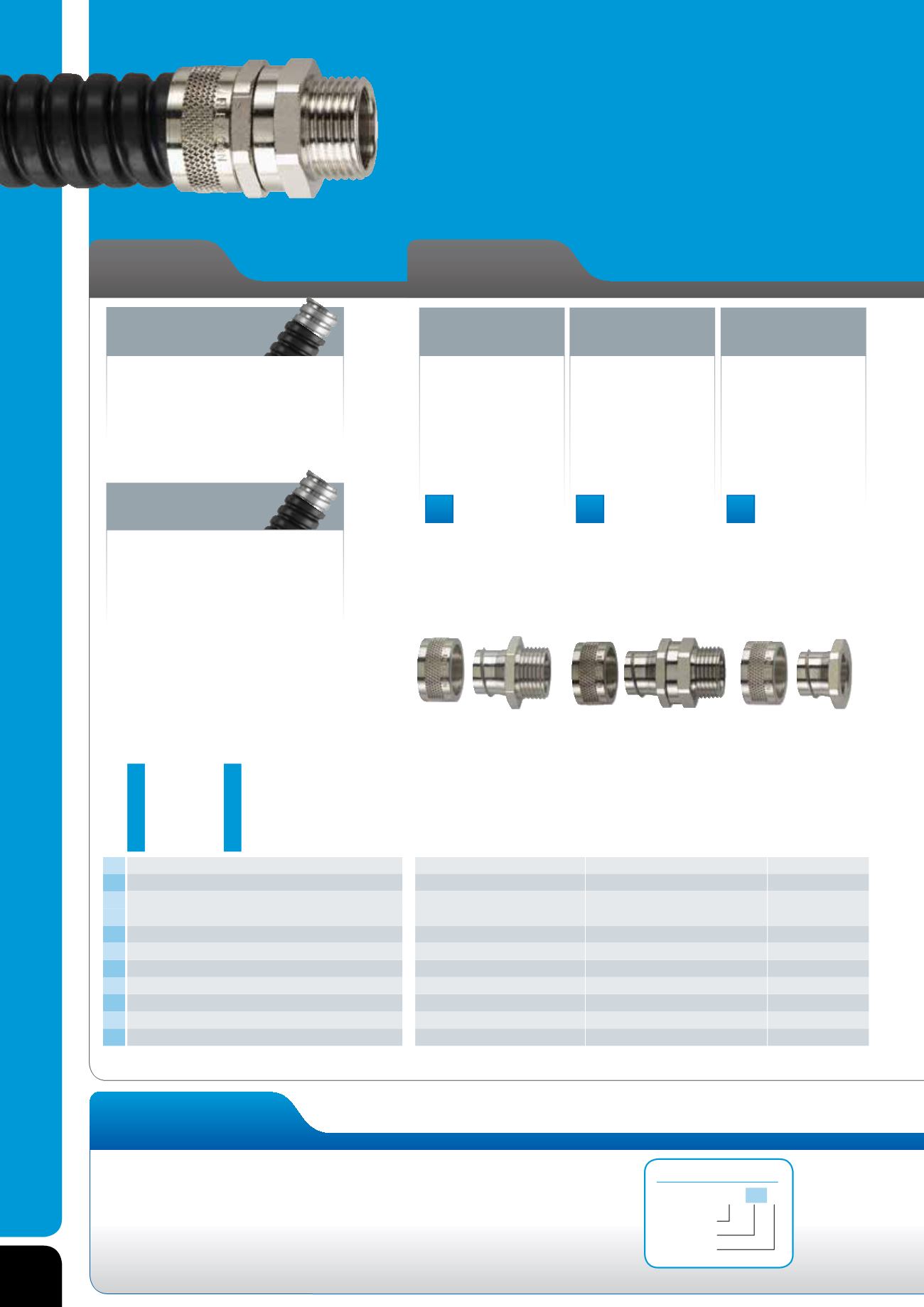

METALLIC
CONDUIT & FITTINGS
60
Ordering Notes
Conduit
FSU & FNU system
galvanised steel pvc
or nylon coated
FSU
Construction: Galvanised steel, helically
wound, flexible conduit with pvc coating.
Colour black. Grey or orange on
request.*
Typical Applications: General factory
wiring and connections to machines.
FNU
Construction: Galvanised steel, helically
wound, flexible conduit with elastomeric
nylon coating. Colour black.
Typical Applications: Demanding
applications requiring higher temperatures
or solvent and abrasion resistance.
outside dia (mm)inside dia (mm)min inside bendradius (mm) part number reel length (m) reel length (m) metric threadpart number metric threadpart number part number PG threadpart number PG threadpart number hole size (mm) FSU part number FNU nominal size (mm)
10
12
16
16
20
25
32
40
50
63
75
M S P
fixed external
thread nickel
plated brass
Two part fitting comprising
shell and body with
external thread. This fitting
can be inserted into a
knockout and secured with
a locknut.
swivel external
thread nickel
plated brass
Two part fitting comprising
shell and body. The
external thread swivels
about the main body. Can
be used with threaded
entries, or knockout
secured with a locknut.
plain hole
connector nickel
plated brass
Two part fitting comprising
shell and body without
thread. The body is fitted
through the opposite side
of the entry to the conduit
and acts as a locking
device also providing a
smooth entry bush.
IP68 IP67 IP66 IP65 IP54 IP40 IP69 IP68 IP67 IP66 IP65 IP54 IP40 IP69 IP68 IP67 IP66 IP65 IP54 IP40 IP69
• Add reel length eg: FSU20-25M for 25m reel
for FNU conduit
* Indicates parts made to order on request and
may be subject to MOQ and lead time
+ Double interlock section
• Available on request:
- low temperature (-40°C) version of FSU
- longer lengths and bulk packaging
- cut lengths and assemblies
- other colours
- stainless steel fittings (grade 316)
- alternative threads
- 45° elbows 16 to 32mm
- UV resistant version of FSU
conduit
thread size
fitting type
How to read the fittings code
FSU10-M12-M
FSU10-M12-M FSU10-PG7-M
FSU12-M16-M FSU12-PG9-M
FSU16-M16-M FSU16-PG11-M
FSU16-M20-M
FSU20-M20-M FSU20-PG16-M
FSU25-M25-M FSU25-PG21-M
FSU32-M32-M FSU32-PG29-M
FSU40-M40-M FSU40-PG36-M
FSU50-M50-M FSU50-PG48-M
FSU63-M63-M
FSU75-M75-M
FSU10-M12-S FSU10-PG7-S
FSU12-M16-S FSU12-PG9-S
FSU16-M16-S FSU16-PG11-S
FSU16-M20-S FSU16-PG13-S
FSU20-M20-S FSU20-PG16-S
FSU25-M25-S FSU25-PG21-S
FSU32-M32-S FSU32-PG29-S
FSU40-M40-S FSU40-PG36-S
FSU50-M50-S FSU50-PG42-S
FSU63-M63-S
9 FSU10-P
12 FSU12-P
16 FSU16-P
20 FSU20-P
25 FSU25-P
32 FSU32-P
40 FSU40-P
51 FSU50-P
61 FSU63-P
75 FSU75-P
FSU10B + 25, 50 10.0 6.8 25
FSU12B 25, 50 14.0 10.2 30
FSU16B 10, 25, 50 FNU16B* 25 17.0 13.0 40
FSU20B 10, 25, 50 FNU20B* 25 21.5 16.9 45
FSU25B 10, 25, 50 FNU25B* 25 26.0 21.1 55
FSU32B 10, 25 FNU32B* 25 34.0 28.1 60
FSU40B 10, 25 44.5 37.6 90
FSU50B 10, 25 55.0 48.4 100
FSU63B 10 64.5 57.5 115
FSU75B 10 79.0 70.0 150
Fittings
