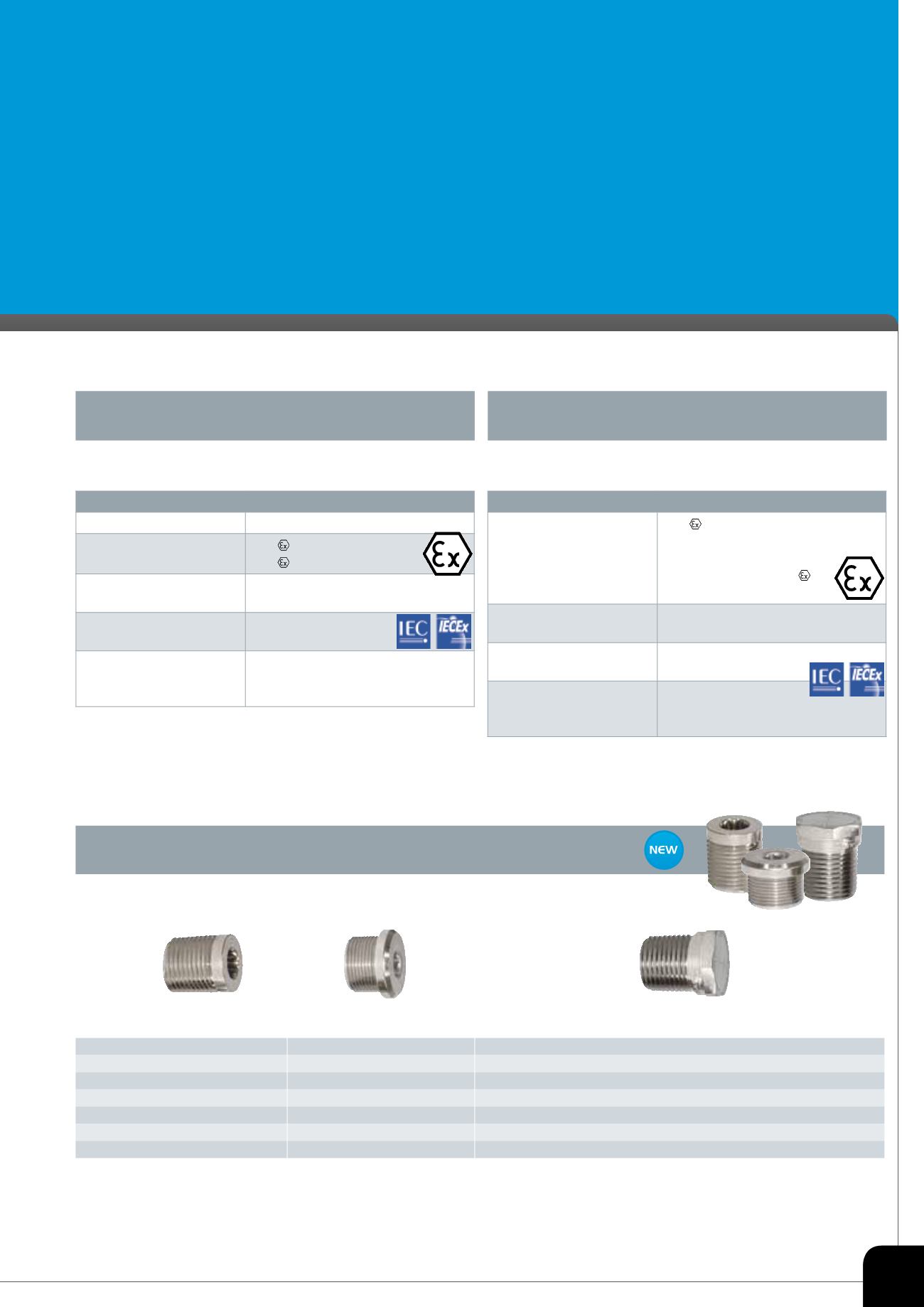

EXD Stopping Plugs
73
Designed to provide a permanent or temporary means of blanking
unused cable entry holes in Flameproof enclosures enabling the
equipment to be safely deployed in the Hazardous Area. Always inserted
from the outside of the enclosure, we have a range of stopping plug
options depending on the required installation method.
The Allen key stopping plugs can be installed or removed using an allen key.
We offer standard stopping plugs or Dome Head type allen key stopping plugs.
The Hex head stopping plugs can be installed or removed with a standard
open ended or ring type spanner or wrench.
Technical Data - Hex Head
ATEX Code of Protection Category ATEX II 2 GD Ex d IIC & Ex e II -
Component & Equipment, Zone 1,
Zone 2, Zone 21, & Zone 22 -
Gas Groups IIA, IIB, IIC, ATEX
IM2 Ex d I, Ex e I
ATEX Compliance Standards
EN 60079-0:2006, EN 60079-1:2004,
EN 60079-7:2007, EN 50281-1-1:1998
IEC Ex Code of Protection Category Ex d I / Ex e I / Ex d IIC / Ex e II,
Ex tD A21 IP6X
IEC Ex Compliance Standards
IEC 60079-0:2004,
IEC 60079-1:2003, IEC 60079-7:2006-07, IEC
61241-0:2004, IEC 61241-1:2004
Technical Data - Standard & Dome Head
Design Specification
BS 6121:Part 1:1989, EN 50262:1999
ATEX Code of Protection Category ATEX IM2 Ex d I, Ex e I;
ATEX II 2 Ex d IIC, Ex e II
ATEX Compliance Standards
EN 60079-0, EN 60079-7, EN 61241-0,
EN 61241-1
IEC Ex Code of Protection Category Ex d I, Ex e I, Ex d IIC, Ex e II,
Ex tD A21 IP6X
IEC Ex Compliance Standards
IEC 60079-0:2004, IEC 60079-1:2003,
IEC 60079-7:2006-07, IEC 61241-0:2004,
IEC 61241-1:2004
Allen Key
Hex Head
M16
M20
M25
M32
M40
M50
M63
Size Range
Standard
Dome Head
B-M16-SP-EXD
B-M20-SP-EXD
B-M25-SP-EXD
B-M32-SP-EXD
B-M40-SP-EXD
B-M50-SP-EXD
B-M63-SP-EXD
B-M16-DSP-EXD
B-M20-DSP-EXD
B-M25-DSP-EXD
B-M32-DSP-EXD
B-M40-DSP-EXD
B-M50-DSP-EXD
B-M63-DSP-EXD
B-M16-HSP-EXD
B-M20-HSP-EXD
B-M25-HSP-EXD
B-M32-HSP-EXD
B-M40-HSP-EXD
B-M50-HSP-EXD
B-M63-HSP-EXD
Hex Head
Our stopping plugs are Nickel Plated Brass as standard.
