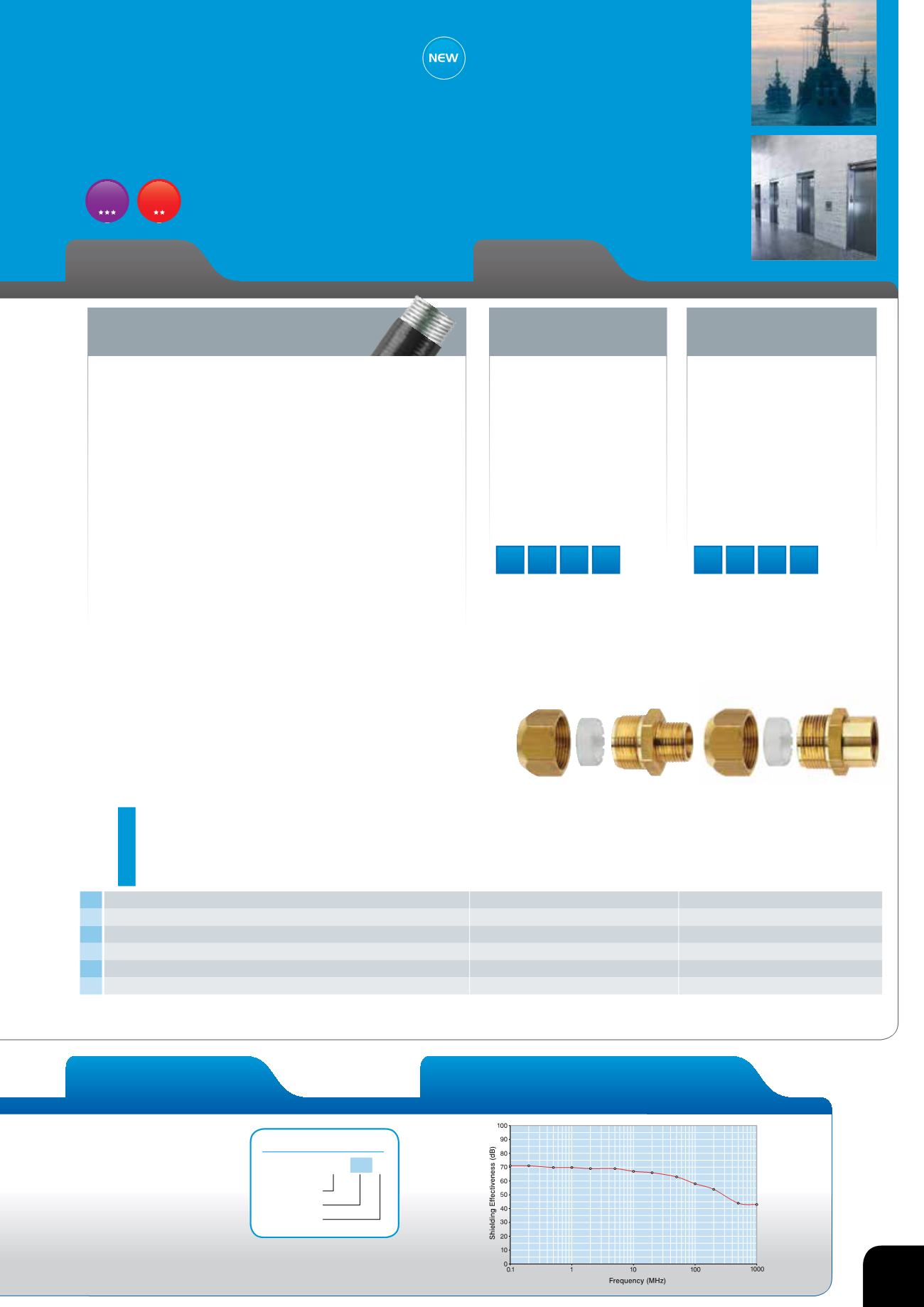

Flexicon
Ultrascreen™
STANDARD
LOW FIRE
HAZARD
EXTRA
LOW FIRE
HAZARD
INHERENT
LOW FIRE
HAZARD
ENHANCED
EMC
SCREEN
SUPER
EMC
SCREEN
LFHP
system
galvanised steel extra LFH
coated, pliable
LFHP
C-HS
F-HS
Construction:
Corrugated galvanised steel with kraft paper lining and
smooth extra LFH outer cover. Colour black.
Typical Applications:
Any installation where there is no movement
and a high IP rating is required.
external thread
brass - high
specification
Multipart compression fitting
including serrated elastomeric
seal. Can be used for knockout
or threaded entries as fitting
rotates until tightened. Provides
EMC screening once outer plastic
sheath is trimmed from end of
conduit (see diagram on
page 99).
internal thread
brass - high
specification
Multipart compression fitting
including serrated elastomeric
seal. Provides EMC screening
once outer plastic sheath is
trimmed from end of conduit (see
diagram on page 99).
•
Pull off strength: Type C-HS 100kg (20mm)
•
Extra low fire hazard, oil resistant and UV resistant
•
Vibration and shock tested to EN61373 Cat 2
•
High compression strength 570kg/100mm
•
Provides EMC screening
•
IP rating: IP66 + IP67 + IP68 (5 bar) + IP69
•
Can be formed into shape requiring fewer clips
•
Temperature range -25˚C to +90˚C
•
Smooth, wipe clean outer cover
•
Does not wrinkle when bent
•
Lloyd's Register Type Approved
•
LUL (Cert No. 297)
•
NCAGE No. U5256
•
Add reel length eg:
FLP20B-25M for 25m reel
•
Available on request:
-
longer lengths
-
cut lengths and assemblies
-
additional sizes
-
full copies of independent
test report confirming
screening effectiveness
conduit
thread size
fitting type
How to read the fittings code
FLP20-M20-C
LFHP20+FLP20-M20-C-HS fittings
Roundbrassboxwith2 lengths of LFHP20+FLP20-M20-C-HS fittings
outside dia (mm)
inside dia (mm)
min inside bend
radius (mm)
metric thread
part number
part number
reel length (m)
L F H P
LFHP16B
25
40
17.8
11.6
FLP16-M16-C-HS
FLP16-M16-F-HS
LFHP20B
25
40
20.9
14.6
FLP20-M20-C-HS
FLP20-M20-F-HS
LFHP25B
25
55
27.3
20.4
FLP25-M25-C-HS
FLP25-M25-F-HS
LFHP32B
25
65
34.0
26.7
FLP32-M32-C-HS
FLP32-M32-F-HS
LFHP40B*
25
85
40.4
32.8
FLP40-M40-C-HS*
FLP40-M40-F-HS*
LFHP50B*
25
130
53.1
45.3
FLP50-M50-C-HS*
FLP50-M50-F-HS*
metric thread
part number
IP68
IP67
IP66
IP65
IP54
IP40
IP69P
I
I
I
I
I
I
P669
IP68
IP67
IP66
IP65
IP54
40
IP69
40
I
I
I
I
I
I 4
I
I
* Indicates parts made to order
on request and may be subject
to MOQ and lead time
16
20
25
32
40
50
nominal size (mm)
Ordering Notes
EMC Screening Performance
Conduit
Fittings
