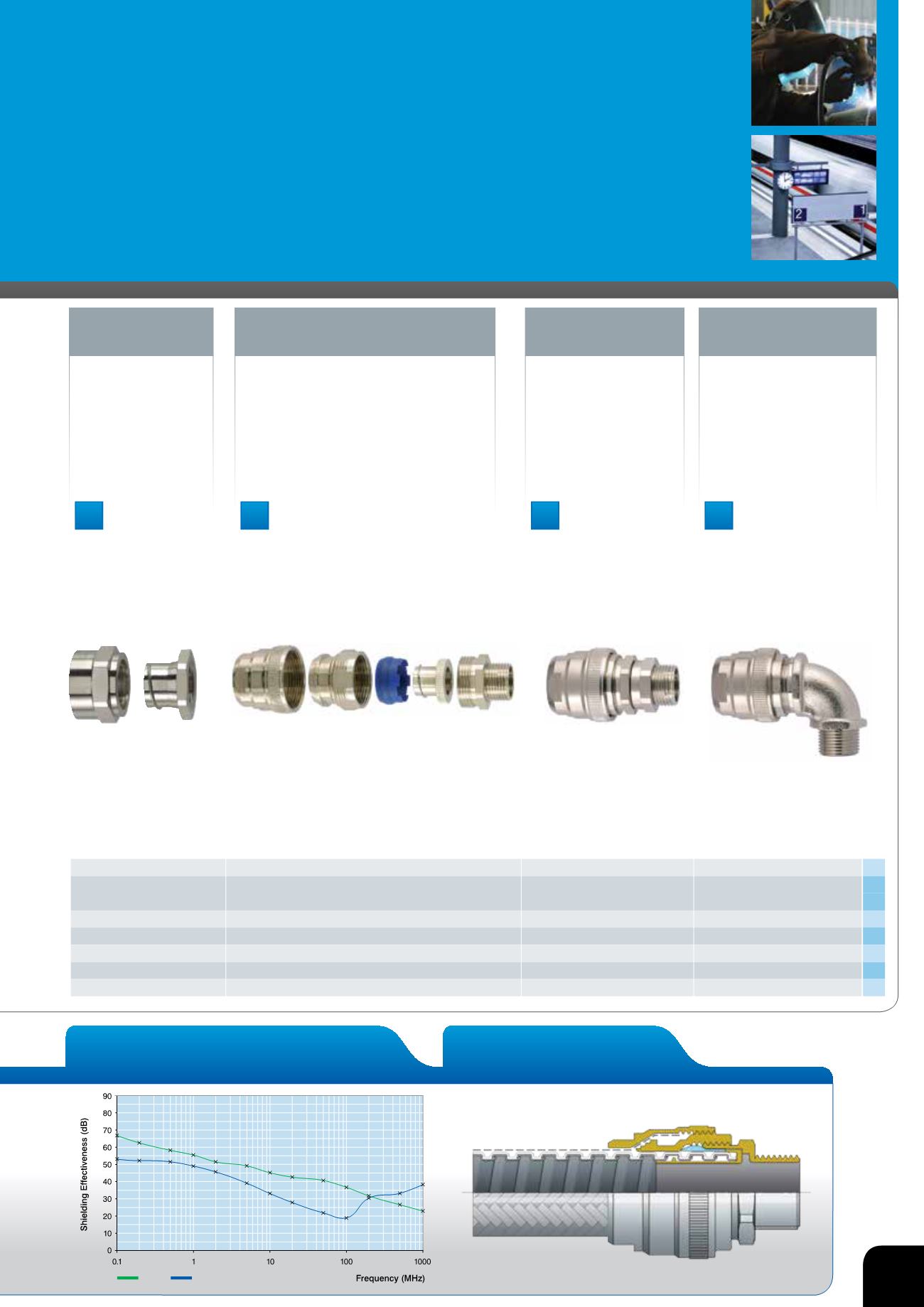

High mechanical strength
•
Tensile strength
with standard fittings 120kg for 20mm size
•
Tensile strength
with C type fittings 300kg for 20mm size
•
Highly flexible
•
IP rating:
IP54 for standard fittings, IP65 for C type fittings
•
High abrasion resistance
•
Resists hot metal swarf and splashes
•
Provides EMC screening
•
Temperature range
-15˚C to +70˚C (FSB)
-20˚C to +90˚C (LFHUBRD)
•
LFHUBRD is extra low fire hazard
•
Compliant to LUL Std 1-085 (LFHUBRD) (Cert No. 297)
•
Nickel plated brass fittings
•
Vibration and shock tested to EN61373 Cat 2
properties
12
FSB12-P
16
FSB16-P
20
FSB20-P
25
FSB25-P
32
FSB32-P
40
FSB40-P
50
FSB50-P
part number
hole size (mm)
FSB16-M16-C
FSB16-M20-C
FSB20-M20-C
FSB25-M25-C
FSB32-M32-C
metric thread
part number
FSB16-PG11-C
FSB16-PG13-C
FSB20-PG16-C
FSB25-PG21-C
FSB32-PG29-C
PG thread
part number
FSB16-M16-C90
FSB16-M20-C90
FSB20-M20-C90
FSB25-M25-C90
FSB32-M32-C90
metric thread
part number
FSB16-M16-C-S
FSB16-M20-C-S
FSB20-M20-C-S
FSB25-M25-C-S
FSB32-M32-C-S
metric thread
part number
nominal size (mm)
P
C-S
C
C90
plain hole
connector
nickel plated brass
Two part fitting comprising
of shell and body without
thread. The body is fitted
through the opposite side
of the entry to the conduit
and acts as a locking
device also providing a
smooth entry bush.
swivel external
thread
nickel plated brass
Multipart compression
fitting including elastomeric
seal can be used for
knockouts or threaded
entries. Braid is locked
between inner and outer
compression nuts.
fixed external thread nickel plated
brass
Multipart compression fitting including
elastomeric seal. Can be used for knockouts.
Braid is locked between inner and outer
compression nuts.
external thread elbow
nickel plated brass
Multipart 90˚ compression fitting
including elastomeric seal. Braid
is locked between inner and
outer compression nuts.
FSB LFHUBRD
IP68
IP67
IP66
IP65
IP54
IP40
IP69
IP68
IP67
IP66
I 5
I 54
I 40
IP69
IP68
IP67
IP66
IP65
IP54
IP40
IP69
IP68
IP67
IP66
IP65
IP54
IP40
IP69
EMC Screening Performance
12
16
16
20
25
32
40
50
Technical Drawing
