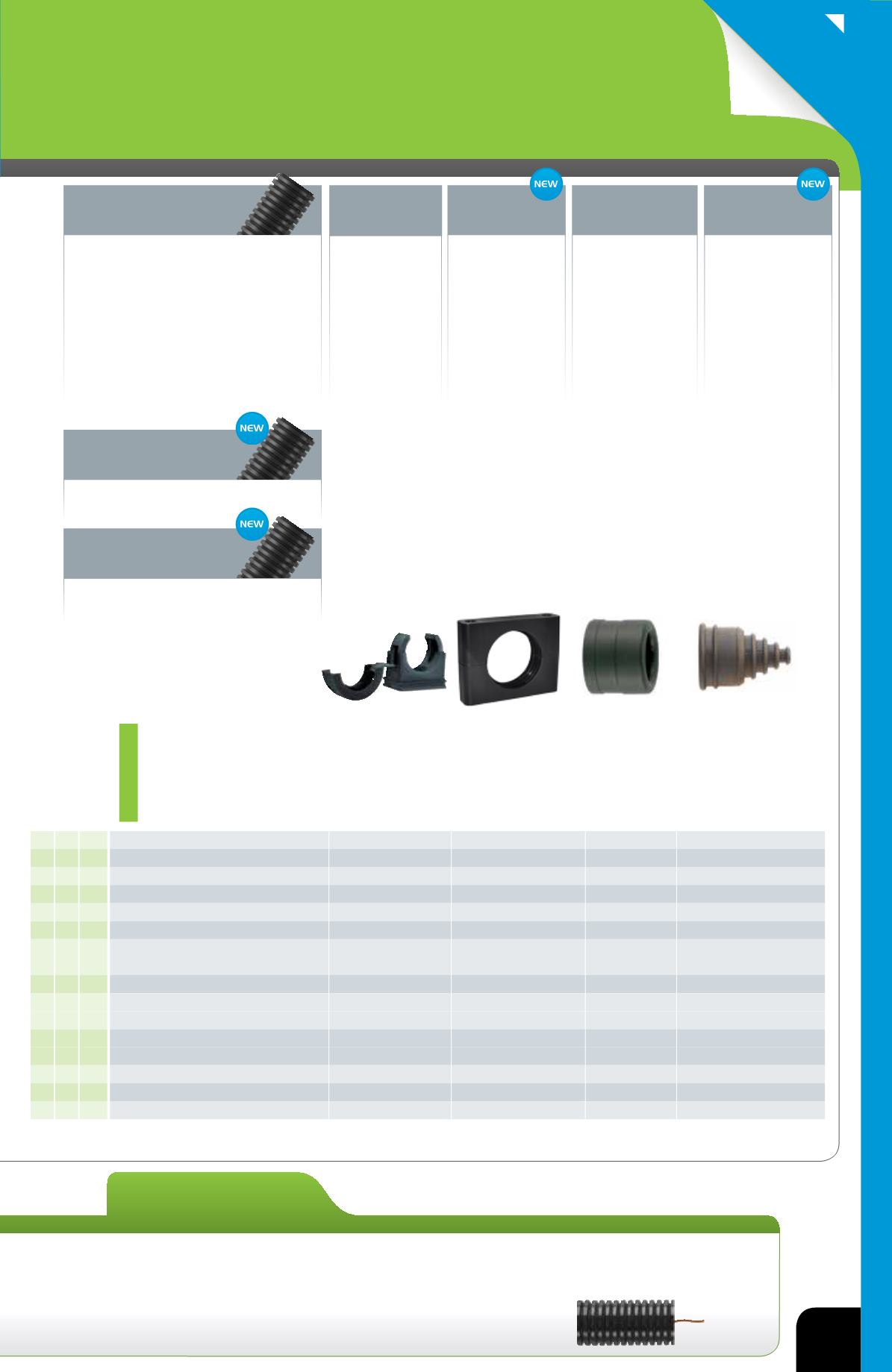

Specify colour (B = Black, G = Grey)
and reel length eg: FPY16B-50M for a
Black 50m reel
•
Some lengths are MTO in grey
•
Available on request:
-
longer lengths and bulk
packaging
-
cut lengths and assemblies
-
additional sizes
-
other colours
-
conduit with pre-installed
draw wire
-
FPADS in Polypropylene (PP)
Ordering Notes
FPP
FCLAMP
•
Acid resistant
•
Temperature range -20˚C to +90˚C
•
Self extinguishing
•
Slit version also available FPP-S
Other options available:
Construction:
Standard weight
polypropylene, flexible conduit. Colour black,
grey (RAL 7031) or white (see page 41)
Typical Applications:
Buildings, particularly
where buried in concrete or plaster.
LS0H conduit for data cabling
applications.
outside dia (mm)
inside dia (mm)
min inside bend
radius (mm)
part number
FCLAMP
reel length (m)
FPP
FPP10
50 10.0 6.3 15
FPP13
50 13.0 9.8 25
FPP16
50 15.8 11.8 35
FPP20
50 20.0 14.8 40
FPP21
50 21.2 16.7 40
FPP25
50 25.0 19.1 50
FPP28
50 28.5 22.8 55
FPP34
25, 50 34.5 28.1 65
FPP42
25 42.5 35.5 80
FPP54
25 54.5 47.2 100
FPP67
10 67.2 56.3 150
Heavy weight conduit for buried
underground applications.
nylon
corrugated
conduit
clip with
integral lid
Nylon PA66 conduit
clip with integral lid
for increased
security.
Incorporates
internal ribs to
prevent corrugated
conduit from pulling
through, 20 Kg with
FPAS21.
REC
FCL
Conduit Clip
FCL10
FCL13
FCL16
FCL18
FCL20
FCL21
FCL21
FCL25
FCL28
FCL28
FCL34
FCL34
FCL42
FCL54
pitch
nominal size (mm)
european (NW) sizes
7 10 F
8 11 F
10 13 F
12 16 F
14 18 F
20 C
17 21 F
21 C
25 C
23 28 F
28 C
29 34 C
29 34 F
36 42 C
48 54 C
56 67 C
F = fine pitch C = coarse pitch
NOTE: FPP - NFR and FPPH.
Contact us for more details
FPP- NFR
FPPH
non-metallic,
heavy duty
conduit clamp
Nylon PA66, conduit
fixing clamp for
corrugated conduit.
Suitable for use with
with fine or coarse
pitch conduits. Can
be used with a
range of
accessories
including cover
plates and weld
plates (available
separately - see
page 45).
EC
End Cap
EC16B
EC21B
EC28B
EC34B
EC42B
EC54B
end cap
Nylon PA66 end cap
to snap over end of
conduit and provide
a smooth entry bush
to prevent snagging
and sharp edges,
and provide a neat
finish when no
connectors are used.
rubber end cap
Thermoplastic
elastomer cap used
to seal end of
conduit. Can be cut
to size depending on
size of cable. Can be
additionally secured
using cable tie (not
supplied).
10
11
13
16
21
28
34
42
54
part number
to fit conduit size
0-7
0-7
0-7
0-11
0-15
0-21
0-25
0-34
0-46
outlet ID mm
REC10
REC10
REC13
REC16
REC21
REC28
REC34
REC42
REC54
FCLAMP- 3-16
FCLAMP- 3-21
FCLAMP- 4-28
FCLAMP- 5-34
FCLAMP- 6-42
FCLAMP- 7-54
FCLAMP- 7-67
FCLAMP- 8-80
for use
with 80mm conduit
