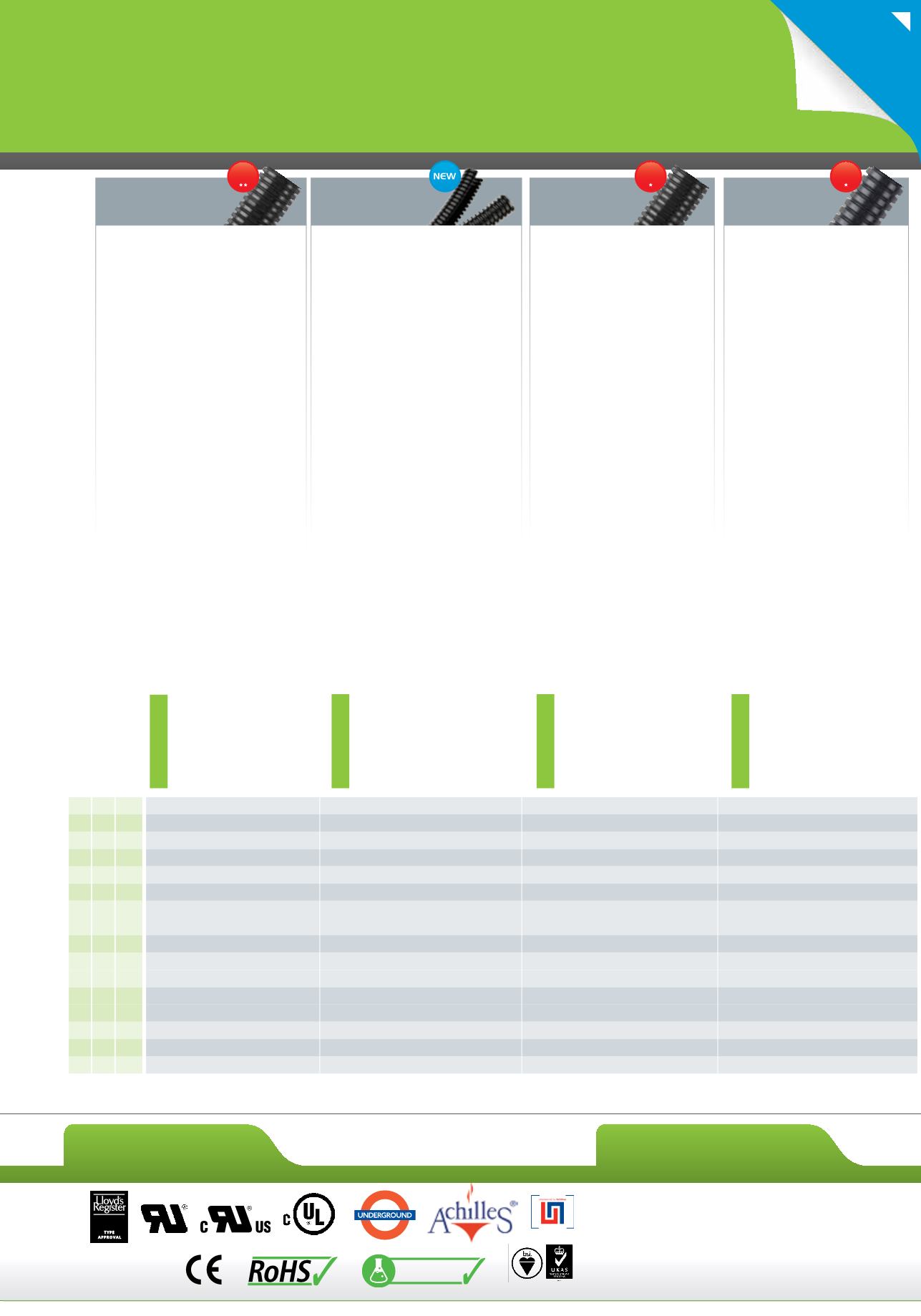

21 / 114
•
For LFH performance see page 102
BS EN IEC 61386
Registered
Link-up
FM58347
REACh
MORE
CONDUITS
OVERLEAF!
Standards
Important Note
FPR
FPADS
FP I
FP I H
We have a range of products that can offer properties dependant on your requirement
for impact resistance, flexibility, fatigue life, operating temperature and fire performance
to name but a few.
F = fine pitch C = coarse pitch
NOTE: refer to conduit properties for applicable standards
pitch
nominal size (mm)
european (NW) sizes
•
Highly flexible
•
Exceptional fatigue life
•
High impact resistance even
at very low temperatures
•
UV resistant
•
Displays self recovery if
crushed
•
Temperature range -50˚C
to +110˚C
•
UL recognised
•
Highly resistant to solvents
and oils
•
Self extinguishing
•
Low fire hazard
•
Halogen, sulphur and
phosphorus free
outside dia (mm)
inside dia (mm)
min inside bend
radius (mm)
part number
reel length (m)
FP I
FPI13
50 13.0 9.8 25
FPI16
50 15.8 11.8 30
FPI21
50 21.2 16.7 35
FPI28
50 28.5 21.7 45
FPI34
25 34.5 28.1 55
FPI42
25 42.5 35.5 60
FPI54
25 54.5 47.2 70
FPI67
10 67.2 56.3 120
Construction:
Standard weight
nylon (PA12) corrugated flexible
conduit. Colour black.
Typical Applications:
Robots
and continual flexing.
•
Highly flexible and high
fatigue life
•
High mechanical strength
•
High impact resistance even
at very low temperatures
•
UV resistant
•
Displays self recovery if
crushed
•
Temperature range -50˚C
to +110˚C
•
UL recognised
•
Highly resistant to solvents
and oils
•
Self extinguishing
•
Low fire hazard
•
Halogen, sulphur and
phosphorus free
Construction:
Heavy weight
nylon (PA12) corrugated flexible
conduit. Colour black.
Typical Applications:
Robots
and continual flexing where
higher mechanical strength
required.
outside dia (mm)
inside dia (mm)
min inside bend
radius (mm)
part number
reel length (m)
FP I H
FPIH13
50 13.0 9.0
25
FPIH16
50 15.8 11.5
35
FPIH21
50 21.2 15.0
45
FPIH28
50 28.5 21.3
50
FPIH34
25 34.5 27.6
60
FPIH42
25 42.5 34.6
70
FPIH54
25 54.5 46.0
80
•
Highly flexible and high fatigue life
•
High impact strength and recovers
if crushed
•
Temperature range -40˚C to +120˚C
(-20˚C to +100˚C for moving
applications)
•
UL recognised
•
Lloyd’s Register Type Approval
•
Extra Low Fire Hazard (LFH)
•
Compliant to LUL Std 1-085
•
UL 94 V0 flame retardancy
•
Halogen, sulphur and phosphorus
free
•
UV resistant
•
Abrasion resistant
•
Highly resistant to solvents and oils
FPR10
50 10.0 6.3 15
FPR13
50 13.0 9.8 25
FPR16
50 15.8 11.8 35
FPR20
50 20.0 14.8 45
FPR21
50 21.2 16.7 45
FPR25
50 25.0 19.1 50
FPR28
50 28.5 21.7 50
FPR34
50 34.5 28.1 60
FPR42
25 42.5 35.5 70
FPR54
25 54.5 47.2 80
outside dia (mm)
inside dia (mm)
min inside bend
radius (mm)
part number
reel length (m)
FPR
Construction:
Standard weight
nylon (highly flame retardant PA6)
corrugated flexible conduit.
Colour black.
Typical Applications:
Railways,
underground and public buildings.
Construction:
Double slit nylon
(PA6) corrugated conduit.
Colour black.
Typical Applications:
Retrofit
and cable assemblies with pre
terminated plugs.
•
Made from 2 interlocking slit
corrugated conduits
•
Temperature range -40˚C to
+120˚C
•
Cables can be inserted laterally
•
Provides abrasion resistance and
routing of cables for static
applications
•
Self extinguishing
•
Halogen, sulphur and
phosphorus free
•
UV resistant
outside dia (mm)
inside dia (mm)
min inside bend
radius (mm)
part number
reel length (m)
FPADS
FPADS11*
50 11.5 6.2 70
FPADS13
50 13.0 7.9 75
FPADS16
50 15.8 10.3 100
FPADS21
50 21.2 13.9 120
FPADS28
50 28.5 20.5 170
FPADS34
25 34.5 26.6 180
FPADS42
25 42.5 32.0 200
FPADS54
25 54.5 43.0 240
STANDARD
LOW FIRE
HAZARD
EXTRA
LOW FIRE
HAZARD
INHERENT
LOW FIRE
HAZARD
STANDARD
LOW FIRE
HAZARD
EXTRA
LOW FIRE
HAZARD
INHERENT
LOW FIRE
HAZARD
STANDARD
LOW FIRE
HAZARD
EXTRA
LOW FIRE
HAZARD
7 10 F
8 11 F
10 13 F
12 16 F
14 18 F
20 C
17 21 F
21 C
25 C
23 28 F
28 C
29 34 C
29 34 F
36 42 C
48 54 C
56 67 C
