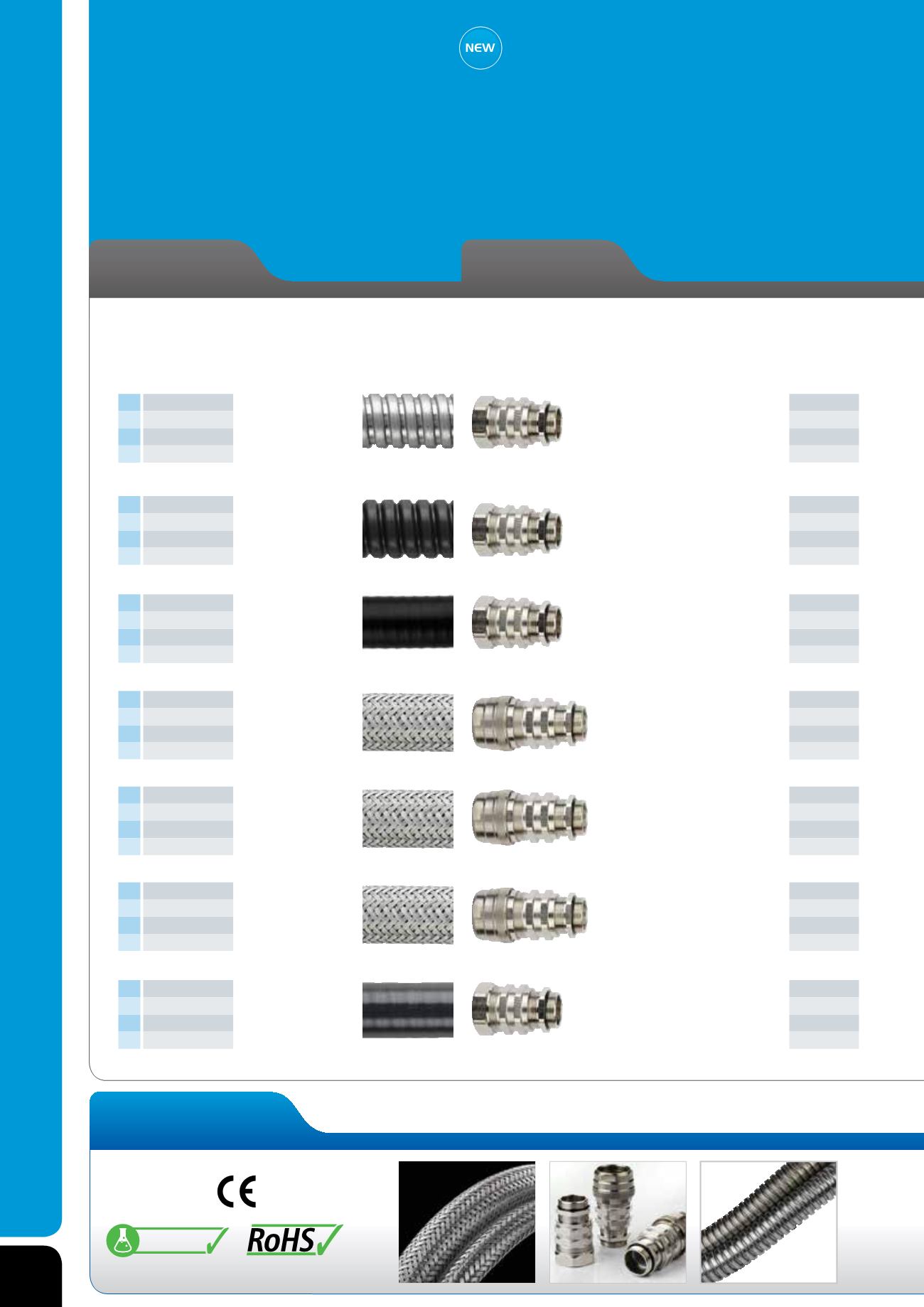

METALLIC
CONDUIT & FITTINGS
84
Conduit
• Combined properties of conduit fitting and cable gland
• Cable strain relief
• Additional IP rating on cable inside conduit*
• Nickel plated brass fittings
• Cable gland properties: IP68 (10 bar) + IP69
• Temperature range
-40˚C to +100˚C for static applications
-20˚C to +100˚C for dynamic applications
• EMC cable gland version on request
properties
Suitable for thefollowingconduits Part Number Conduit Fitting IP rating of cablegland Clamping range ofcable gland IP rating of conduitsystem Conduit size (mm)
16
20
25
32
16
20
25
32
16
20
25
32
16
20
25
32
16
20
25
32
16
20
25
32
16
20
25
32
*IP rating up to IP68 (10 bar), IP69 dependent on cable used
Standards
Fittings
FSU16-BM16-CG 4.5-10mm
FSU20-BM20-CG FU & SSU IP40 IP68 (10 bar)+IP69 7-13mm
FSU25-BM25-CG 9-17mm
FSU32-BM32-CG 11-21mm
FSU16-BM16-CG 4.5-10mm
FSU20-BM20-CG FSU, FNU, LFHU and FPU IP65 IP68 (10 bar)+IP69 7-13mm
FSU25-BM25-CG 9-17mm
FSU32-BM32-CG 11-21mm
LTP16-BM16-CG LTP, LTPHC, LTPUL, LTPAS, 4.5-10mm
LTP20-BM20-CG LTPSS, LTPLFH IP66+IP67+ IP68 (10 bar)+IP69 7-13mm
LTP25-BM25-CG LTBRDP, LTBRDLFH, LTPPU IP68 (5 bar)+IP69 9-17mm
LTP32-BM32-CG and LTPPUAS 11-21mm
FSB16-BM16-CG 4.5-10mm
FSB20-BM20-CG FB & FUSSB IP40 IP68 (10 bar)+IP69 7-13mm
FSB25-BM25-CG 9-17mm
FSB32-BM32-CG 11-21mm
FSB16-BM16-CG 4.5-10mm
FSB20-BM20-CG FSB & LFHUBRD IP65 IP68 (10 bar)+IP69 7-13mm
FSB25-BM25-CG 9-17mm
FSB32-BM32-CG 11-21mm
LTPB16-BM16-CG 4.5-10mm
LTPB20-BM20-CG LTPBRD IP66+IP67+ IP68 (10 bar)+IP69 7-13mm
LTPB25-BM25-CG IP68 (5 bar)+IP69 9-17mm
LTPB32-BM32-CG 11-21mm
LPC16-BM16-CG 4.5-10mm
LPC20-BM20-CG LPC, LPCG, IP66+IP67+ IP68 (10 bar)+IP69 7-13mm
LPC25-BM25-CG LPCO, LPCBU IP68 (5 bar)+IP69 9-17mm
LPC32-BM32-CG 11-21mm
Cable Gland Fittings
cable strain relief and enhanced
IP rating for Flexicon conduits
For applications that require the conduit system to provide strain relief and
enhanced IP rating to the cables being mechanically protected eg.
rail market or heavy machinery construction sector.
REACh
