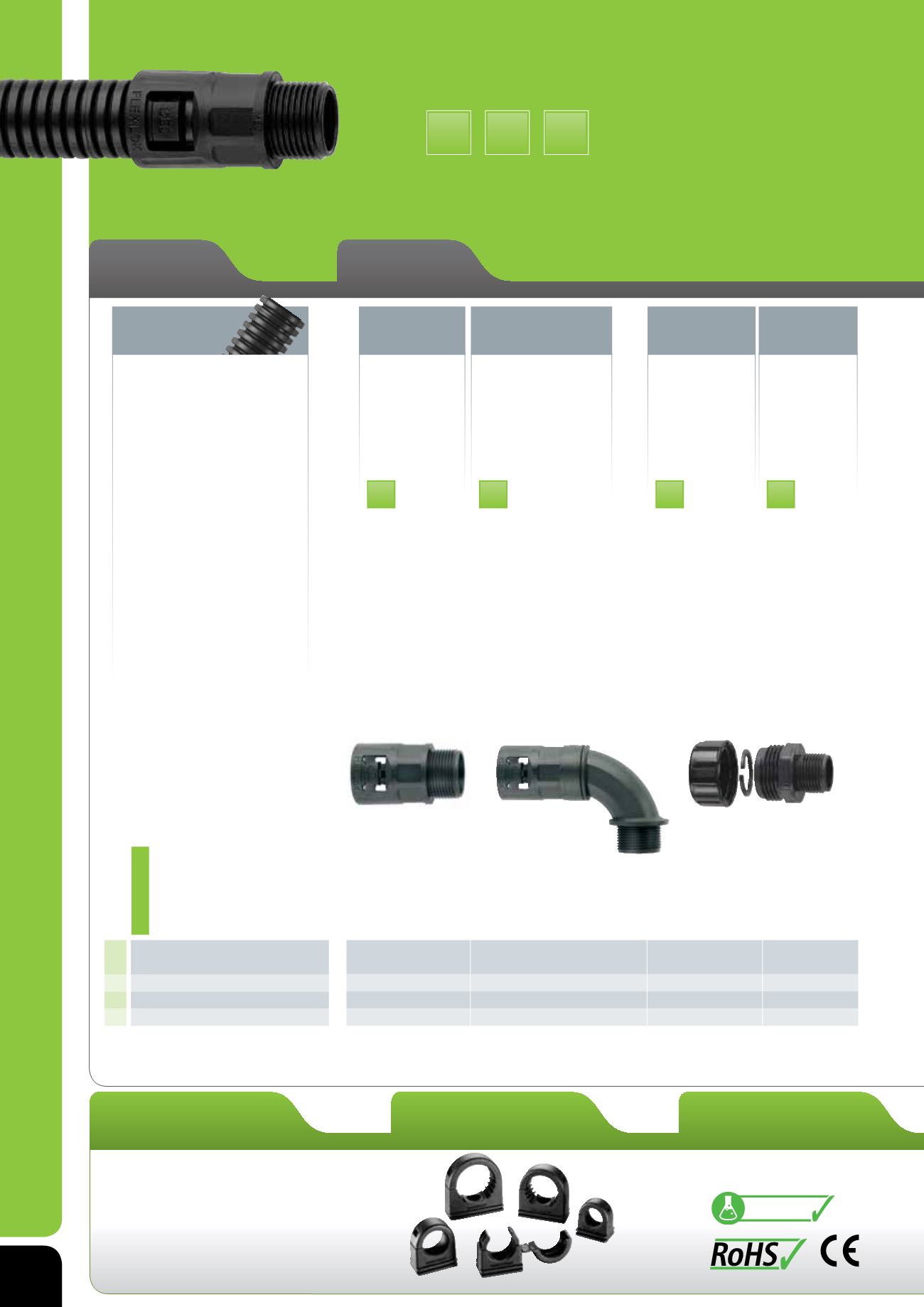

NON-METALLIC
CONDUIT & FITTINGS
Ordering Notes
Fittings
FPL system
upvc corrugated pliable conduit
IP68 IP67 IP66 IP65 IP54 IP40 IP69 IP 8 IP67 IP66 IP65 IP54 IP40 IP69 IP68 IP67 IP 6 IP65 IP54 IP40 IP69
outside dia (mm)inside dia (mm)min inside bendradius (mm) part numberreel length (m) F P L nominal size (mm) metric threadpart number metric threadpart number
16
16
20
25
34
MP-16-M16
MP-16-M20
MP-20-M20
MP-25-M25
MP-32-M32
metric threadpart number
FLK16-M16
FLK16-M20
FLK20-M20
FLK25-M25
FLK34-M32
MPS-16-M16
MPS-16-M20
MPS-20-M20
MPS-25-M25
MPS-32-M32
MP shown
metric threadpart number
FLK16-M16-90
FLK16-M20-90
FLK20-M20-90
FLK25-M25-90
FLK34-M32-90
• Specify black or grey (B = Black, G = Grey)
with FPA fittings
• Available on request:
- longer lengths and bulk packaging
- cut lengths and assemblies, additional sizes
- alternative threads, other colours
BS EN IEC 61386
* Push in fittings available on page 38
Construction: Standard weight,
upvc, corrugated pliable conduit.
Colour black, grey (RAL 7045)
or white. (see page 41 in
certain sizes.)
Typical Applications: Static
connections in buildings.
• High compression strength
• Bends to a small radius
• IP rating:
IP40 with MP and T fittings
IP66 with FLK fittings
IP67 with MPS fittings
• Temperature range
-5˚C to +70˚C
• Self extinguishing
• UV resistant (black)
• Tensile strength:
FLK20 25kg
MP20 20kg
MPS20 15kg
FPL
straight
external
thread
One piece, slim,
fast fit, nylon
external threaded
fitting suitable for
knockouts or
threaded entries.
90° elbow external
thread
One piece, slim, fast fit,
nylon external threaded
90 degree elbow fitting
suitable for knockouts.
straight
external
thread
Straight nylon
compression fitting
external thread
including locknut.
straight
external
thread
Straight nylon
compression
fitting with seal
external thread
including locknut.
FLK FLK90 MP MPS
IP68 IP67 IP66 IP65 IP54 IP40 IP69 IP68 IP67 IP66 IP65 IP54 IP40 IP69 IP68 IP67 IP66 IP65 IP54 IP40 IP69 IP68 IP67 IP66 IP65 IP54 IP40 IP69
REACh
FPL16 100 16.0 12.0 25
FPL20 50, 100 20.0 15.0 30
FPL25 50 25.0 19.5 40
FPL34 25 34.5 27.9 50
Fittings Conduit
See page 45
