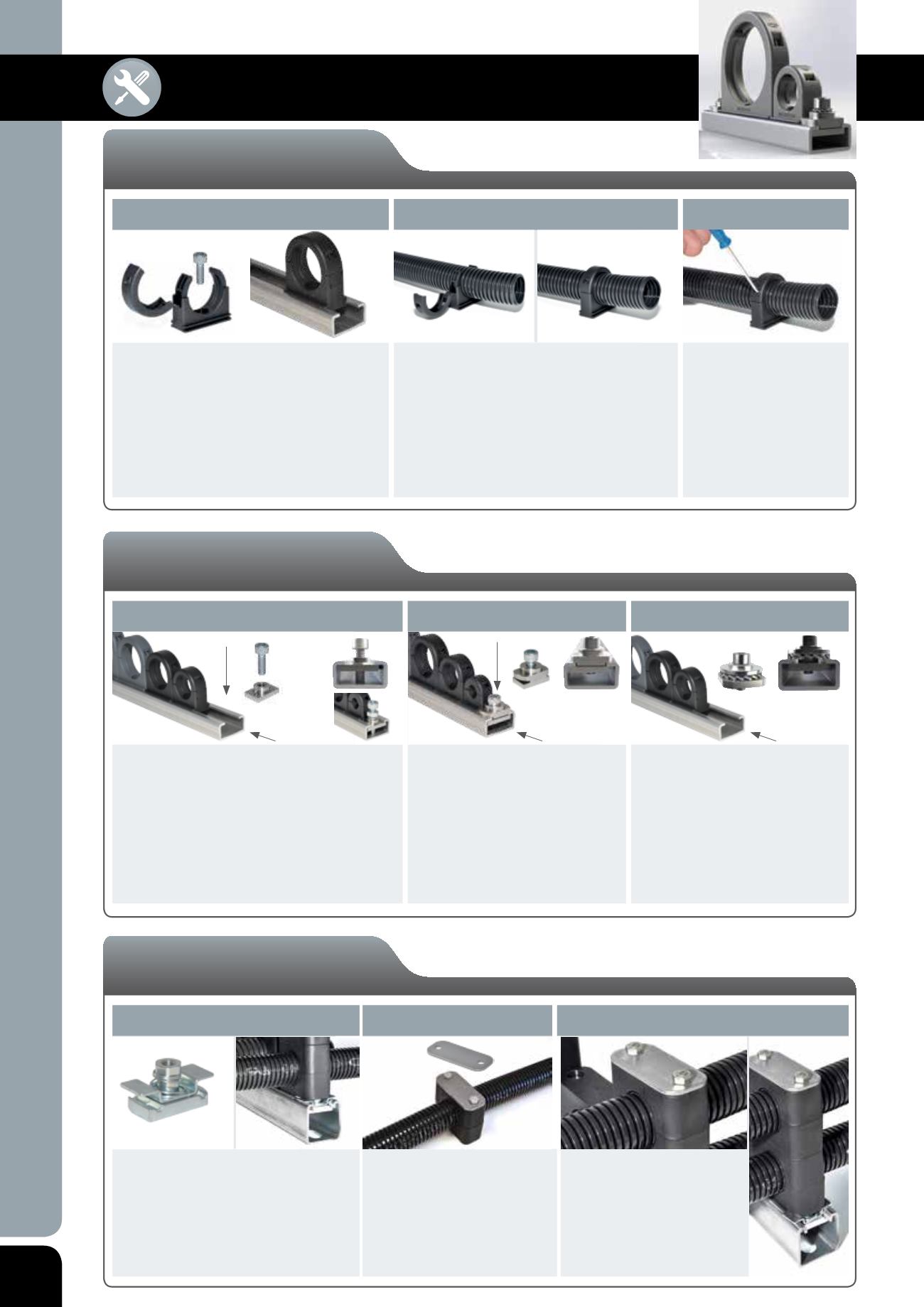

Conduit Mounting Options
Conduit Clips
Mounting Rails
Clips can be secured using
the fixing hole in the base of
the clip.
The clips can also be
mounted and secured using
a mounting rail.
The clip design has rail
guides either side, allowing
easy location.
To install, slide the FCL clip
in from the end of the rail.
Slide the FCL or FCL-P clip in from the end of the mounting rail.
Move the clips into the desired position and use Mounting Rail
Fixing Accessories (MRFA) to secure. The MRFAL can be
inserted from above at any given position, or alternatively from
the end of the rail.
Secure its position using a bolt. The bolt length will be dependant
on the mounting rail depth used - consult us for more details.
Tighten the bolt until secure. For anti-vibration performance add a
spring washer and locking nut as shown above.
Clip Mounting
Basic Clip Fixing
Ensure the hinged lid is open and insert the conduit from above.
The clip size is shown on the clip for easy reference. The clip
provides a secure fit whether the hinge is open or closed. The
FCL clip includes an internal rib to help locate and retain
corrugated conduits. The FCL-P clips do not have this rib and
can therefore be used with plain or smooth outer conduits.
Once the conduit is located, close the hinge and listen for a
click. The clip does not rely on the hinge to retain the conduit in
place however the lid increases conduit retention.
Fixing Conduit
The MRFAM products can be inserted from
above at any given position along the rail or
alternatively can be inserted from the end of
the rail.
The MFRAM clamps onto the top rail to secure
the fittings. This accessory can also be used
to secure the F-Clamps products to the
Mounting Rail.
Other Fixing Accessories
F-Clamp Options
The Universal adaptor provides a mounting option for
with various channel rails.
r allows compatibility with other
channel rails such as Unistrut ®, Halfen and Hilti rails.
For further details consult us or visit our website.
The F-Clamps products can be mounted (and stacked)
securely. For further details contact us.
Universal Adaptor
The F-Clamps products can be mounted
side by side and / or can be stacked
vertically. This offers a flexible and
adaptable method of support for different
conduit sizes.
For stacking arrangements and stacking
bolts contact us for further details.
F-Clamp Stacking
To remove the conduit insert a
small screwdriver where it states
OPEN. Push down and lever to
release. The hinge should then be
free to open.
The MRFAH products can be inserted from the
end of the rail. The MFRAH has a serrated
washer to offer anti-vibration performance. It
clamps on the top rail to secure the fittings.
Simple Removal
Other Fixing Accessories
Accessories
The Cover plate sits on top of the F-Clamp
and can be used to provide additional
strength when using the F-Clamps.
For additional strength the F-Clamps can
be mounted onto Weld plates. Flexicon
can offer two versions. For further details
consult us.
