Flexicon Product and Solutions Guide

49 / 114

49
Standards Technical Drawing
• Smooth, wipe clean surface
• Accepts some torsional movement
• IP rating: IP66, IP67 and IP68 with MPC fittings
IP66, IP67, IP68 (2 bar) + IP69 with metal
C-type compression fittings
• Temperature range -5˚C to +70˚C (LPC and LPCG)
-20˚C to +70˚C (LPCO and LPCGN)
-20˚C to +90˚C (LPCBU)
• LPCG (grey) is suitable for food contact
• LPCO (orange) is highly flexible
• LPCGN (green) is oil resistant
• LPCB (black) is UV resistant
• Self extinguishing
• Metric nylon fittings supplied complete with locknut
• Vibration and shock tested to EN 61373 Cat 2
properties
nominal size (mm) metric threadpart number metric threadpart number PG threadpart number NPT threadpart number NPT threadpart number NPT threadpart number metric threadpart number PG threadpart number
MPC-12-M16
MPC-16-M16
MPC-16-M20
MPC-20-M20
MPC-25-M25
MPC-32-M32
MPC-40-M40
MPC-50-M50
MPC-63-M63
MPC45-16-M20
MPC45-20-M20
MPC45-25-M25
MPC45-32-M32
MPC-16-050
MPC-20-050
MPC-25-075
MPC-32-100
MPC-40-125
MPC-50-150
MPC-63-200
MPC90-16-050
MPC90-20-050
MPC90-25-075
MPC90-32-100
MPC90-40-125
MPC90-50-150
MPC90-63-200
MPC90-16-PG11
MPC90-16-PG13
MPC90-20-PG16
MPC90-25-PG21
MPC90-32-PG29
MPC90-40-PG36
MPC-12-PG9
MPC-16-PG11
MPC-16-PG13
MPC-20-PG16
MPC-25-PG21
MPC-32-PG29
MPC-40-PG36
MPC-50-PG42
MPC-63-PG48
MPC45-16-050
MPC45-20-050
MPC45-25-075
MPC45-32-100
MPC90-16-M16
MPC90-16-M20
MPC90-20-M20
MPC90-25-M25
MPC90-32-M32
MPC90-40-M40
MPC90-50-M50
MPC90-63-M63
BS EN IEC 61386
REACh

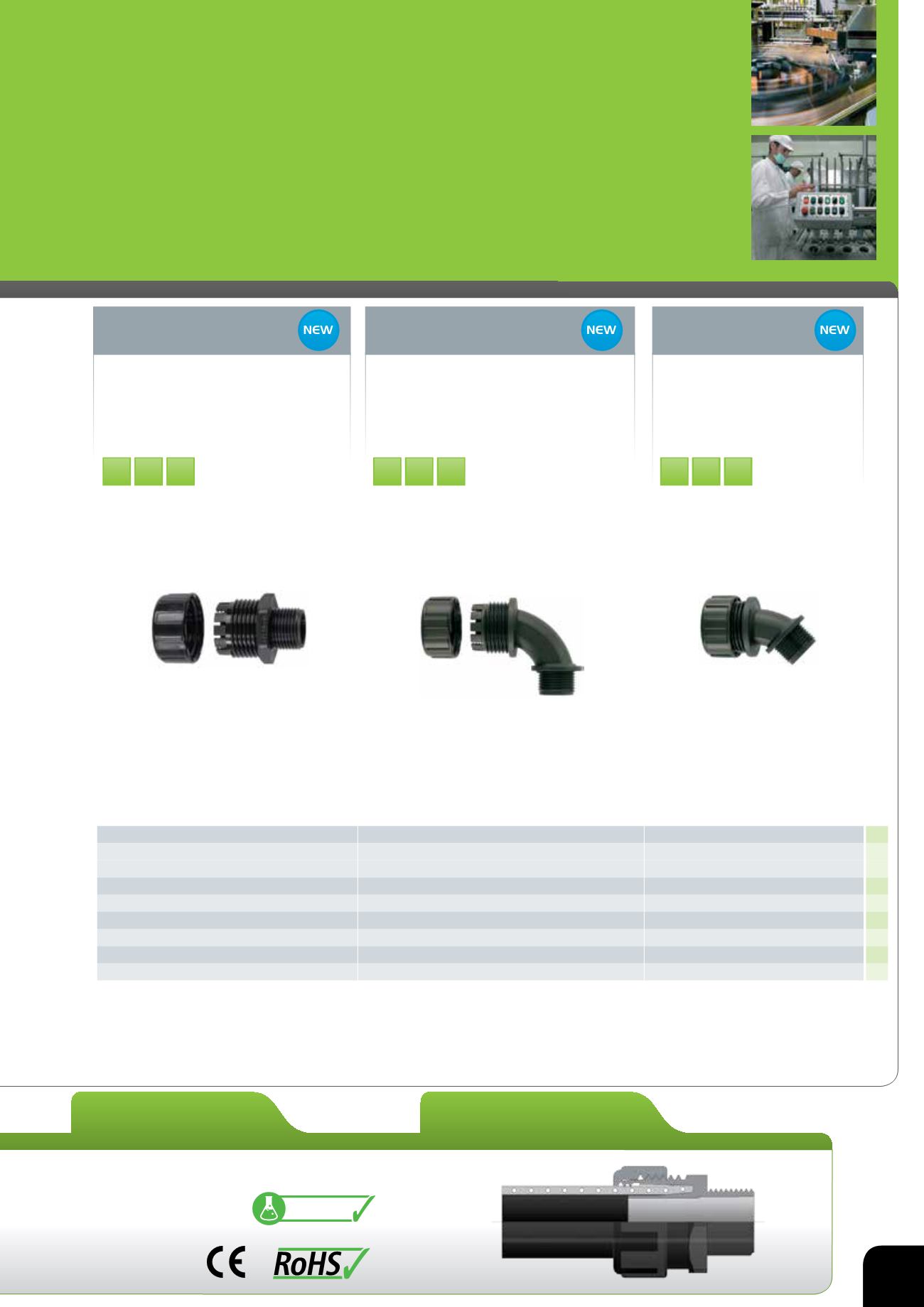

straight nylon compression fitting
external thread including locknut
2 part compression fitting with internal spigot
and all round external teeth to grip conduit.
Available in black or grey
(RAL 7001).
MPC
IP68 IP67 IP66 IP65 IP54 IP40 IP69 I I I I I I I
12
16
16
20
25
32
40
50
63
90° elbow nylon compression fitting
external thread
2 part compression, 90 degree elbow fitting with
internal spigot and all round external teeth to grip
conduit. Available in black or grey (RAL 7001).
MPC90
IP68 IP67 IP66 IP65 IP54 IP40 IP69 I I I I I I I
45° elbow nylon fitting
external thread
2 part compression, 45 degree elbow
fitting with internal spigot and all round
external teeth to grip conduit. Available
in black or grey (RAL 7001).
MPC45
IP68 IP67 IP66 IP65 IP54 IP40 IP69 I I I I I I I
